MyDealer:Wood Chipper
- Fuel Type: Diesel
- Power: 74 hp (55.2 kW)
- Capacity: 12″ x 17″ infeed
Features

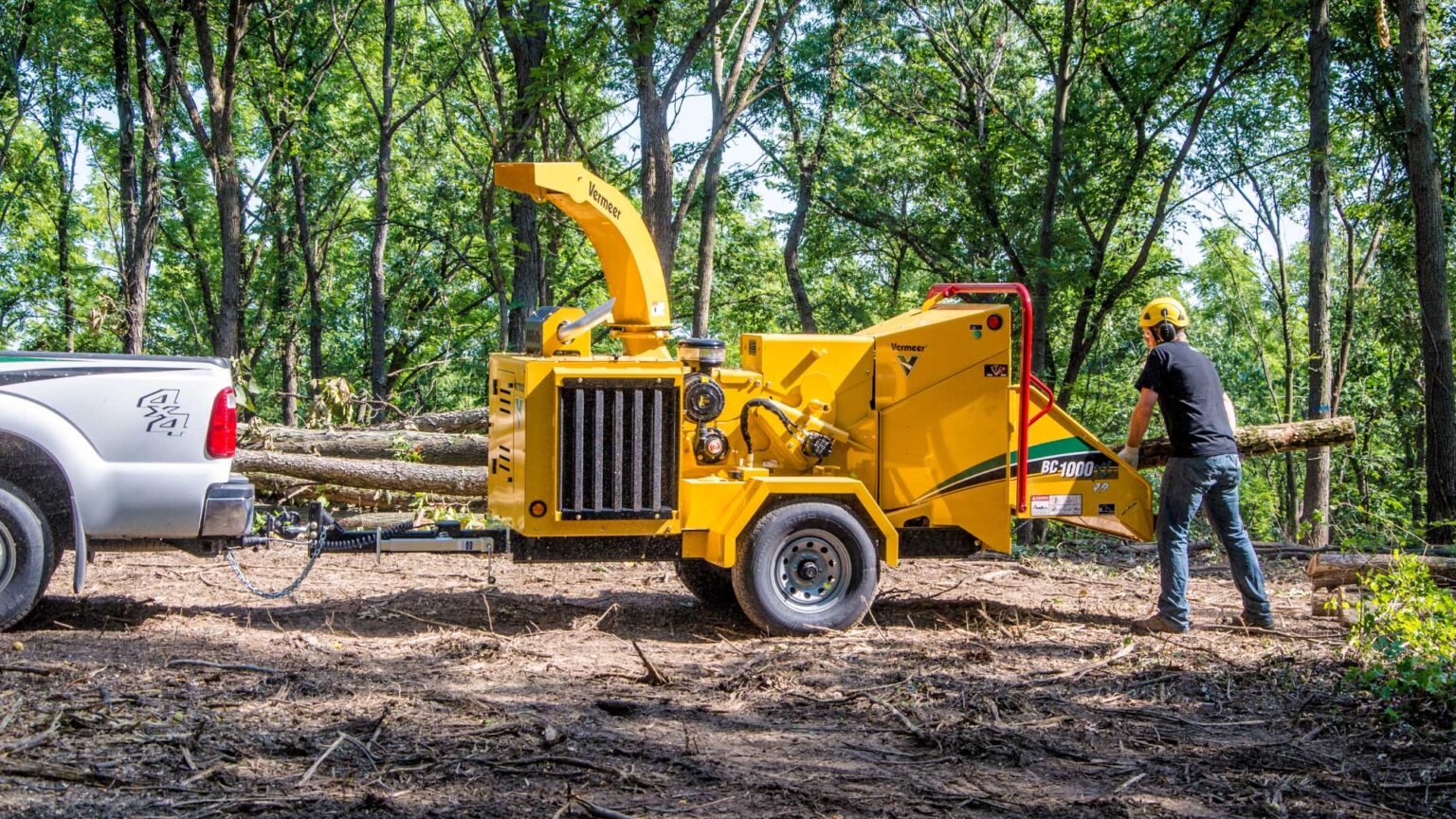

The heavy duty Vermeer BC1000XL wood chipper with its all steel engine enclosure is designed to hold up for the long haul.
Key Features
- Keep up the pace because the BC1000XL comes with a 25-gallon/94.6 L fuel tank that lets you put in more hours before refuelling.
- Minimize maintenance because once the shield is opened, belts can be changed without tools, and the clutchless PTO system eliminates the need to slide the engine.
- Provides operator safety with the patented bottom feed stop bar. The four-position upper feed control bar with dual stop positions and forward/reverse feed positions mounts over the feed table, enabling the operator to stop the feed rollers and select forward or reverse operations.
Engine
- Make and Model: Cummins B3.3L Tier 4i (Stage IIIB)
- Number of Cylinders: 4
- Gross Horsepower (Maximum): 74 hp / 55.2 kw
- Torque (Max): 181 ft-lb / 245.4 Nm
- Fuel Tank Capacity: 25 gal / 94.6 L
- Max Fuel Consumption: 4.6 gph / 17.4 lph
- Fuel Type: Diesel
- Air Cleaner: 2-stage dry with safety element
- Oil Filter: Spin-on
- Recommended Oil: API CH4
- Oil Volume with Filter: 8.5 qt / 8 L
- Maximum Angle of Continuous Operation: 30 deg
- Coolant Capacity (Engine and Radiator): 2.3 gal / 8.5 L
- Cooling Medium: Liquid
- Alternator: 60
- Fan: 20 inches (50.8) suction
- Clutch Type: Clutchless PTO
- Clutch Drive Engagement: Belt tensioner
Feed System
- Feed Roller Orientation: Horizontal
- Number of Feed Rollers: 1
- Feed Roller Clamp Load: 350 lbs / 158.8 kg
- Feed Roller Minimum Distance to Drum: 1 inch / 2.5 cm
- Feed Roller Dimension: 20 inches x 17 inches (50.8 cm x 43.2 cm)
- Number of Knives: 2
- Weight of Feed Roller: 400 lbs / 181.4 kg
- Number of Feed Roller Motors: 1
- Motor Displacement: 28.3
- Motor Manufacturer: White
- Feed Speed: 105 ft/min
- Infeed Table Width: 52 inches / 132.1 cm
- Infeed Table Length: 32 inches / 81.3 cm
- Infeed Hopper Height: 12 inches / 30.5 cm
- Infeed Throat Capacity: 12 inches H x 17 inches W (30.5 cm H x 43.2 cm W)
- Pinch Point – Distance to End of Feed Table: 66.5 inches / 168.9 cm
- Distance from Feed Table to Ground: 26 inches / 66 cm
- Infeed Table Material Thickness: 0.2 inch / 0.5 cm
Safety System
- Bottom Feed Stop Bar: Standard
- Bottom Feed Stop Bar Diameter: 2 inches / 5.1 cm
- Bottom Feed Stop Bar Material Thickness: 11 GA
- Actuation Force (BFSB): 34 lbs / 15.4 kg
- Normal Sensitivity: 22 deg
- Reduced Sensitivity: 12 deg
- Reset Method: Green hold-to-run button
- Four Position Feed Control Bar: Standard
- Positions: 4: E-stop, forward, neutral and reverse
- Actuation Force: 34 lbs / 15.4 kg
- Green Hold to Run Button: Standard
Drum/Disc Cutting System
- Material Capacity: 12 inches / 30.5 cm
- Width: 0.4 inch / 1 cm
- Thickness: 20 inches / 50.8 cm
- Diameter: 20 inches / 50.8 cm
- Speed: 2000 rpm
- Weight With Shaft: 460 lbs / 208.7 kg
- Safety Lock – Number of Positions: 2
- Number of Knives: 2
- Knife Thickness: 0.6 inch / 1.6 cm
- Material: A8 chipper steel
- Useable Edges: 2
- Knife Size: 0.63 inch x 4.5 inches x 9 inches (1.6 cm x 11.4 cm x 22.9 cm)
- Number of Bolts/Knife: 4
- Replaceable Threaded Knife Block: Yes
- Number of Paddles: 3
- Fixture Method: Weld-on
- Bedknife Size: 3.5 inches x 17.3 inches (8.9 cm x 43.8 cm)
- Bedknife Thickness: 1 inch / 2.5 cm
- Bedknife Material: 1018
- Bedknife – Number of Useable Edges: 4
Cutter Drive Components
- Number of Bearings: 2
- Bore: 2.4 inches / 6.1 cm
- Type: Spherical rollers
- Manufacturer: Linkbelt
- Dynamic Capacity: 31400 lbs / 14242.8 kg
- Static Capacity: 53500 lbs / 24267.2 kg
- Belt Idler/Tensioner: Yes
- Belt Type: 5V
Discharge System
- Chute Height: 101 inches / 256.5 cm
- Chute Rotation Angle: 270 deg
- Rotation Type: Chain-drive manual crank with pin lock
- Rotational Lock: Yes
Hydraulic System
- Tank capacity: 7 gal / 26.5 L
- Recommended Oil Type: Vermeer VMF
- System Type: Open center
- Filtration Method: 10 micron return; 100 micron suction
- Pump Flow at Maximum RPM: 2.7 gpm / 10.2 L/min
- System relief pressure: 2500 psi / 172.4 bar
- Flow Control: No
- Directional Control: Yes
- Oil Cooler: No
Electrical System
- System Voltage: 12 volt
- Battery: Group 31; 660 CCA
- Standard Gauges: Fuel, hour
- Deluxe Gauges: Fuel, voltage, water temp, oil pressure, tach
- Switches: Droop, rocker
- Controller: Vermeer ACS
- Display: N/A
- Shutdown System: High temp, low pressure
- Radio Remote Control: No
Chassis
- Frame Description: 7 inches (17.78 cm) Z channel; .25 inch (0.64 cm) thickness
- Tongue Description: 2.5 inches x 4.5 inches x .25 inch (6.4 cm x 11.4 cm x .6 cm)
- Tongue Extension: Extendable 24 inches (61 cm) @ 12 inches (30.5 cm) increments
- Hitch Type: Pintle
- Fender Description: Bolt-on steel
- Axle/Suspension: Torsion
- Type – Option One: Rubber torsional
- Manufacturer – Option One: Dexter
- Capacity – Option One: 5200
- Tires – Option One: ST235/80/R16 Load Range E
- Wheels – Option One: 16 inches (40.6)
- Axle/Suspension – Option Two: Torsion
- Type – Option Two: Rubber Torsional
- Manufacturer – Option Two: Dexter
- Capacity – Option Two: 7000 lb (3175.2
- Tires – Option Two: ST235/80/R16 Load Range E
- Wheels – Option Two: 16 inches x 6 inches (40.6 cm x 15.2 cm)
- Brake Type: Standard Electric or optional hydraulic
- Trailer Light Type: LED
