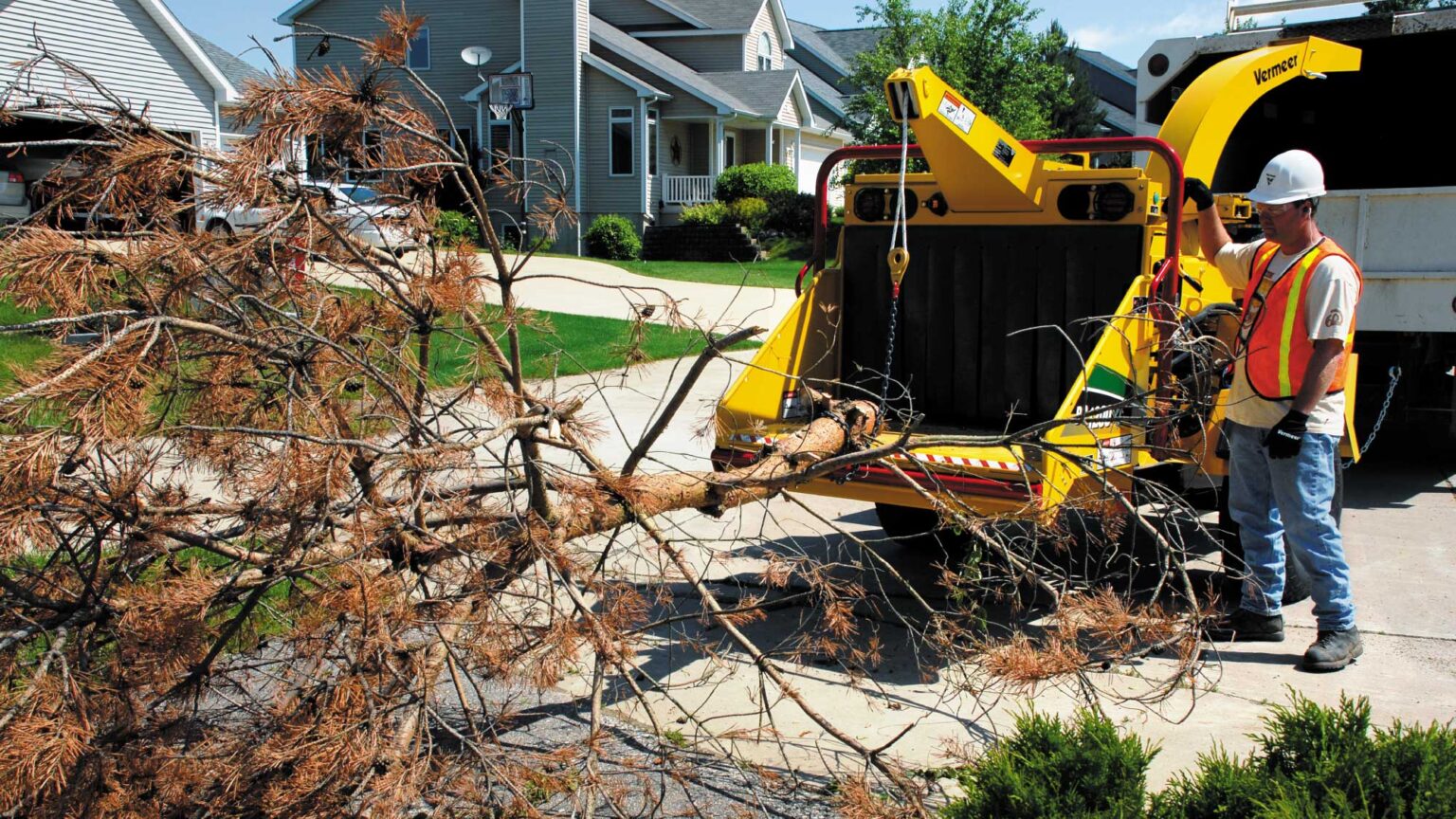

BC1200XL Wood Chipper

Wood Chipper

Fuel Type: Diesel
Power: 110 hp (82 kW)
Capacity: 13.25″ x 17″ infeed

Features

Available with a 110 hp Cummins QSB3.3 Turbo Tier 3 diesel engine, the BC1200XL is rugged, powerful, and offers innovative features designed for safety and performance.

Key Features

Get more done thanks to the aggressive feeding action of dual horizontal offset feed rollers.
Protect your engine with the SmartFeed system, which monitors engine speed and stops or reverses the feed rollers if needed.
Take on the heavy work with an optional winch for effortless handling of large logs.
Prevent premature wear to the belt-drive system using the clutchless PTO system, which prevents high-speed engagement of the cutter drum.

General Dimensions and Weights

Length (Table Up, Tongue In): 168 inches / 426.7 cm
Length (Table Down, Tongue Extended): 206 inches / 523.2 cm
Width: 79 inches / 200.7 cm
Height: 103 inches / 261.6 cm
Sound level: 120 dB(a)

Engine

Make and Model: Cummins QSB3.3 Turbo Tier 3
Number of Cylinders: 4
Gross Horsepower (Maximum): 110 hp / 82 kw
Torque (Max): 304 ft-lb / 412.2 Nm
Fuel Tank Capacity: 25 gal / 94.6 L
Max Fuel Consumption: 6.1 gph / 23.1 lph
Fuel Type: Diesel
Air Cleaner: 2-stage dry with safety element
Oil Filter: Spin-on
Recommended Oil: API CH-4/SJ
Oil Volume with Filter: 9 qt / 8.5 L
Maximum Angle of Continuous Operation: 30 deg
Cooling Medium: Liquid
Coolant Capacity (Engine and Radiator): 2.5 gal / 9.5 L
Alternator: 95 Amp
Fan: 22 inches (55.8 cm)
Clutch Type: Clutchless PTO
Clutch Drive Engagement: Belt tensioner

Feed System

Feed Roller Orientation: Horizontal
Number of Feed Rollers: 2
Feed Roller Clamp Load: 2650 lbs / 1202 kg
Feed Roller Clamp Type: Hydraulic cylinder
Feed Roller Minimum Distance to Drum: 1 inch / 2.5 cm
Feed Roller Dimension: 15 inches / 38.1 cm
Number of Knives: 8
Feed Roller Dimension (Two): 11.1 inches (28.3 cm)
Number of Knives (2): 12
Weight of Feed Roller: 80 lbs / 36.3 kg
Number of Feed Roller Motors: 2
Motor Manufacturer: White Hydraulic
Feed Speed: 110 ft/min
Infeed Table Width: 52 inches / 132.1 cm
Infeed Table Length: 30.1 inches / 76.5 cm
Infeed Hopper Height: 32 inches / 81.3 cm
Infeed Throat Capacity: 13.3 inches x 17 inches (33.7 cm x 43.2 cm)
Pinch Point – Distance to End of Feed Table: 67.4 inches / 171.2 cm
Distance from Feed Table to Ground: 27.2 inches / 69.1 cm
Infeed Table Material Thickness: .2 inch / .5 cm

Safety System

Bottom Feed Stop Bar: Standard
Bottom Feed Stop Bar Diameter: 2 inches / 5.1 cm
Bottom Feed Stop Bar Material Thickness: 11 GA
Actuation Force (BFSB): 34 lbs / 15.4 kg
Normal Sensitivity: 22 deg
Reduced Sensitivity: 12 deg
Reset Method: Dual green hold-to-run buttons
Four Position Feed Control Bar: Standard
Diameter: 2 inches / 5.1 cm
Material Thickness: 0.1 inch / 0.3 cm
Positions: Four positions: Emergency stop, forward, and reverse
Actuation Force: 34 lbs / 15.4 kg
Green Hold to Run Button: Standard

Drum/Disc Cutting System

Material Capacity: 13.3 inches / 33.8 cm
Width: 20 inches / 50.8 cm
Thickness: 0.4 inch / 1 cm
Diameter: 20 inches / 50.8 cm
Speed: 2000 rpm
Weight With Shaft: 480 lbs / 217.7 kg
Safety Lock – Number of Positions: 2
Number of Knives: 2
Knife Thickness: 0.6 inch / 1.6 cm
Material: A8 chipper steel
Useable Edges: 2
Knife Size: 0.625 inch x 4.5 inches x 9 inches (1.6 cm x 11.4 cm x 22.9 cm)
Number of Bolts/Knife: 4
Replaceable Threaded Knife Block: Yes
Number of Paddles: 5
Fixture Method: Weld-on
Air Flow: 2000 cfm
Bedknife Size: 3.5 inches x 17.3 inches (8.9 cm x 43.8 cm)
Bedknife Thickness: 1 inch / 2.5 cm
Bedknife Material: 1018
Bedknife – Number of Useable Edges: 4

Cutter Drive Components

Number of Bearings: 2
Bore: 2.4 inches / 6.2 cm
Type: Spherical roller
Manufacturer: Linkbelt
Dynamic Capacity: 31400 lbs / 14242.8 kg
Static Capacity: 53500 lbs / 24267.2 kg
Belt Idler/Tensioner: Yes
Belt Type: 5V

Discharge System

Chute Height: 104 inches / 264.2 cm
Bottom Thickness: 0.1 inch / 0.2 cm
Top Thickness: 0.1 inch / 0.3 cm
Side Wall Thickness: 0.1 inch / 0.3 cm
Deflector Thickness: 0.1 inch / 0.3 cm
Chute Rotation Angle: 270 deg
Rotation Type: Manual pivot with handle
Rotational Lock: Yes

Hydraulic System

Tank capacity: 12 gal / 45.4 L
Recommended Oil Type: Vermeer VMF
System Type: Open center, dual pumps
Filtration Method: 10 micron return, 100 micron suction
Pump Flow at Maximum RPM: 4.1 gpm / 15.7 L/min
System relief pressure: 2500 psi / 172.4 bar
Auto Reverse PSI: 2500 psi / 172.4 bar
Flow Control: No
Directional Control: Yes
Oil Cooler: No

Electrical System

System Voltage: 12 volt
Battery: Group 31; 950 CCA
Standard Gauges: Fuel, hour gauges, voltage, water temperature, oil pressure, tachometer gauges, multifunction display
Switches: Lower feed stop bar senstivity, toggle, SmartFeed and Ecoldle
Controller: Vermeer ACS
Display: LCD
Shutdown System: High temperature, low pressure
Radio Remote Control: No

Chassis

Frame Description: 7 inches (17.78) Z channel; 0.25 inches (0.64 cm) thickness
Toolbox Description: No
Tongue Description: 2.5 inches x 4.5 inches x 0.38 inch (6.4 cm x 11.4 cm x 9.5 mm)
Tongue Extension: Extendable 18 inches (45.7 cm)
Hitch Type: Pintle
Fender Description: Bolt-on
Axle/Suspension: Torsion
Type – Option One: Rubber torsional
Manufacturer – Option One: Dexter axle
Capacity – Option One: 7000 lb (3175.2 kg)
Tires – Option One: ST235/80/R16 Load Range E
Wheels – Option One: 16 inches (40.6 cm)
Tires – Option Two: ST285/75/R16 Load Range E
Wheels – Option Two: 16 inches (40.6)
Brake Type: Electric
Trailer Light Type: LED
