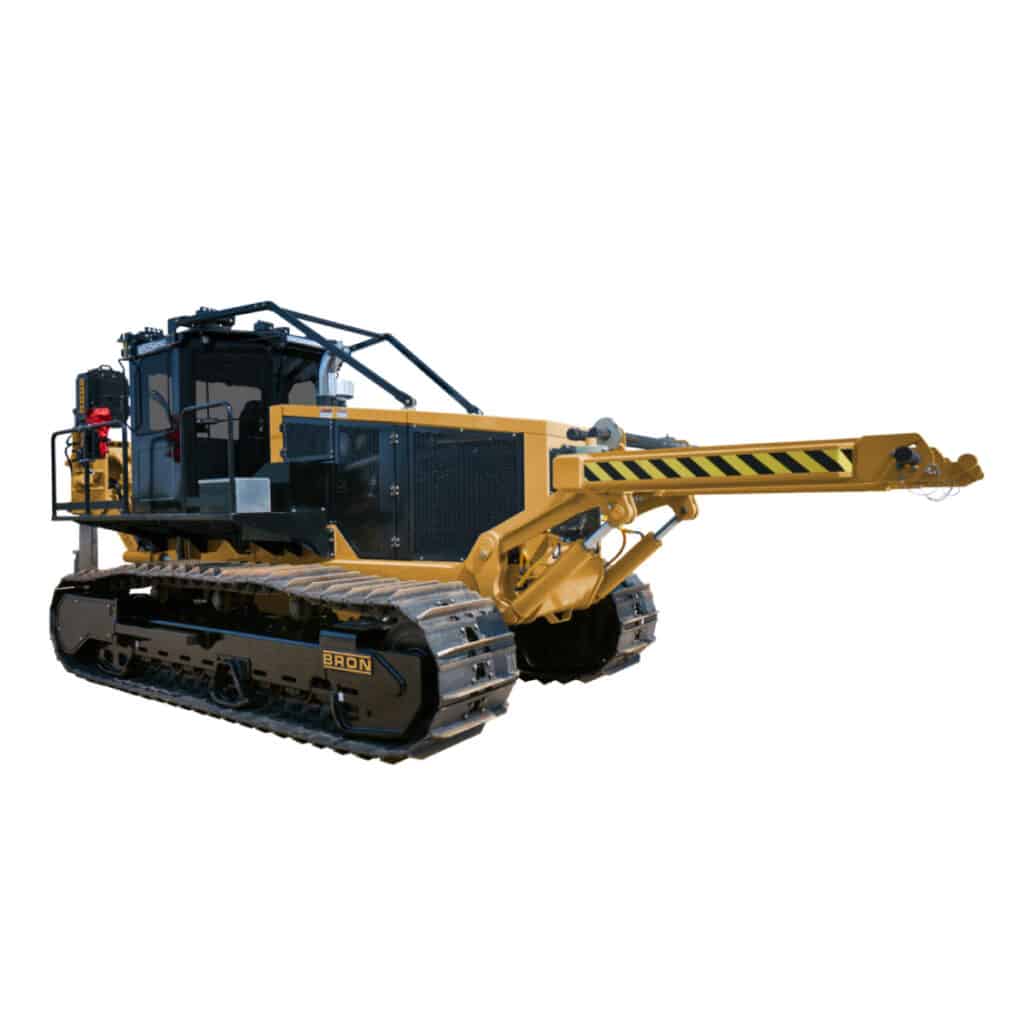

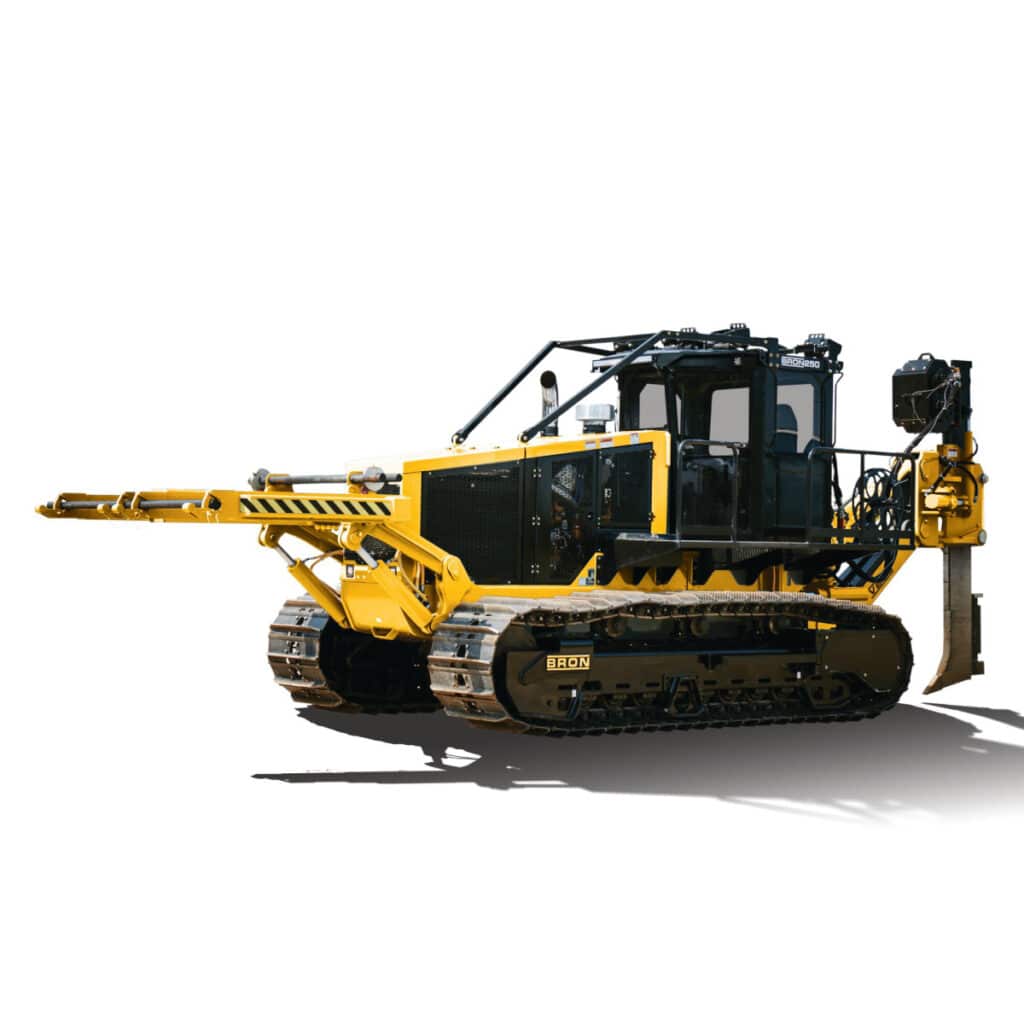

BRON 250HD Utility Plow

Utility Plow

Engine power: 335 hp (250 kW)
6.2 psi low ground pressure
Oscillating tracks manoeuverability
Superior operator control & comfort
72″ maximum plowing depth
D6 undercarriage

The BRON 250 is a robust mid size Utility Tractor used for the installation of underground utilities. Features include an oscillating track frame, tilting mainframe, powerful V250 vibratory plow and a spacious ergonomic cab. The BRON 250 performs effectively in all soil conditions. Whether installing a single product or multiple products, the BRON 250 is one tough machine.

Installing 3-phase power has never been easier or quicker than with the BRON 250 Utility Tractor. The BRON 250 is available with a patented installation chute that consists of multi-duct openings with a hopper to install your preferred aggregate around cables or ducts.

Features

Decelerator pedal

The decelerator pedal offers the option to change operating ranges for specific applications. Allows full hydraulic flow to the plow when slower travel speeds are required.

Reel carrier

The 8,000 lb capacity reel carrier can handle two spools for ease of dual Installation.

Fairleads & slider chute

Fairleads on the roof & a slider chute keep the cables in line, organized & ready for installation. Additional fairleads & 40” fairleads are available as options.

Oscillating & self-levelling tracks

Tracks pivot indepen- dently for maximum traction. Hydraulic cylinders keep the machine level for perfect grading across sloped surfaces.

ROPS cab

Roll-Over Protection Structure (ROPS certified) canopy protects the operator.

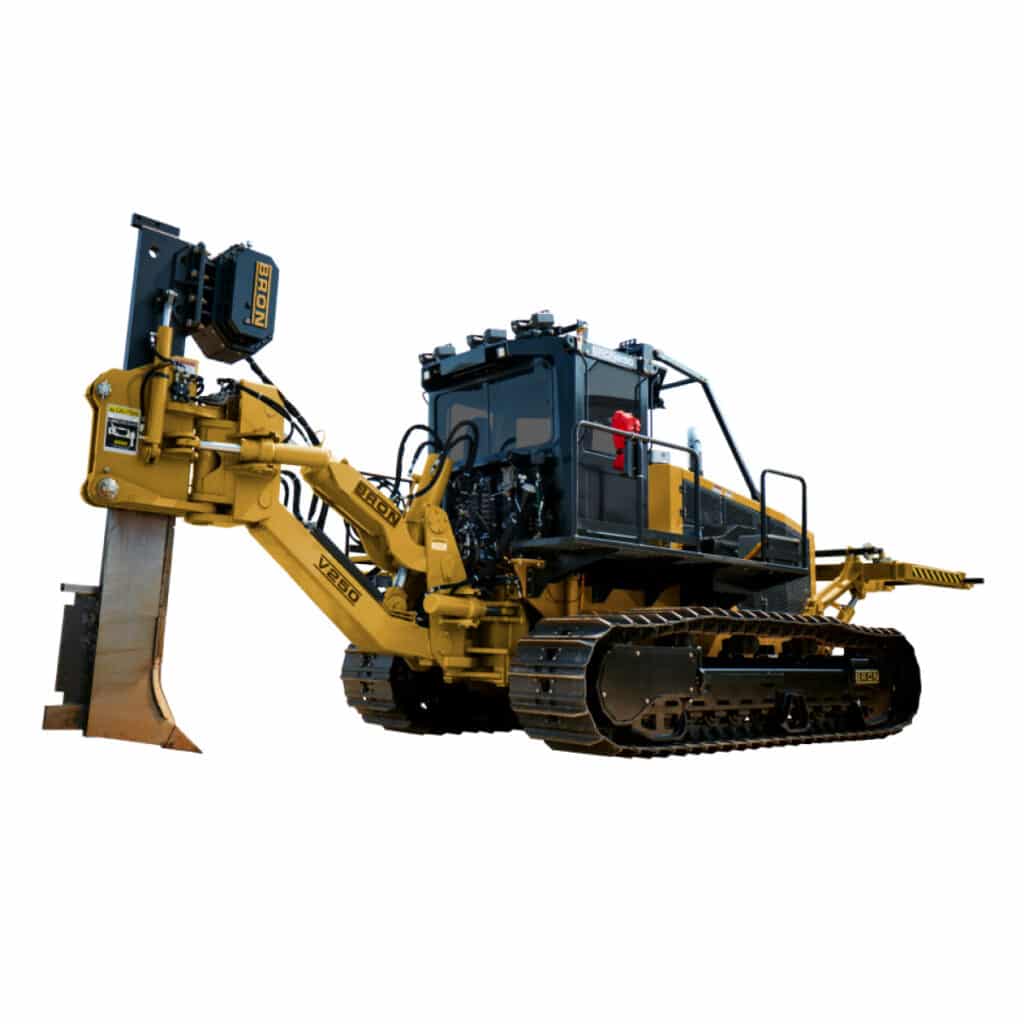

V250 plow

Ideal for installations where tractive power is limited, this offsetting vibratory plow is designed for the installation of fibre optics, copper cable, conduit, and pipe.

Optional extras

Cab

Spacious Heated & Air Conditioned cab is designed for operator comfort. Roll-Over Protection Structure (ROPS certified) canopy protects the operator. Optional open ROPS canopy.

Positive air shut-off

The positive air shut-off shuts down the engine by preventing air intake.

Blade & guards

Slant Blades & K-Line Blades are available on the BRON V250. Various size guards are available based on the size of product being installed.

Chute & hopper

A variety of chutes are available to accommodate your installation requirements, including sand hopper and custom solutions.

Power rewind

Enables a figure 8 pattern as the cable/line comes on or off the reel, helping to prevent cable damage.

Tape holder & feed tube

Adjustable Tape Holder and Feed Tube to install Warning Tape above the cable at various depths.
