Mini Skid Steer Loader

  • Length: 234.5 cm (No bucket)
  • Width: 106.7 cm (With standard bucket)
  • Fuel Type: Diesel
  • Power: 40 hp (29.8 kW)
  • Capacity: 725.7 kg Rated Operating (SAE), 2073 kg Tipping

Features

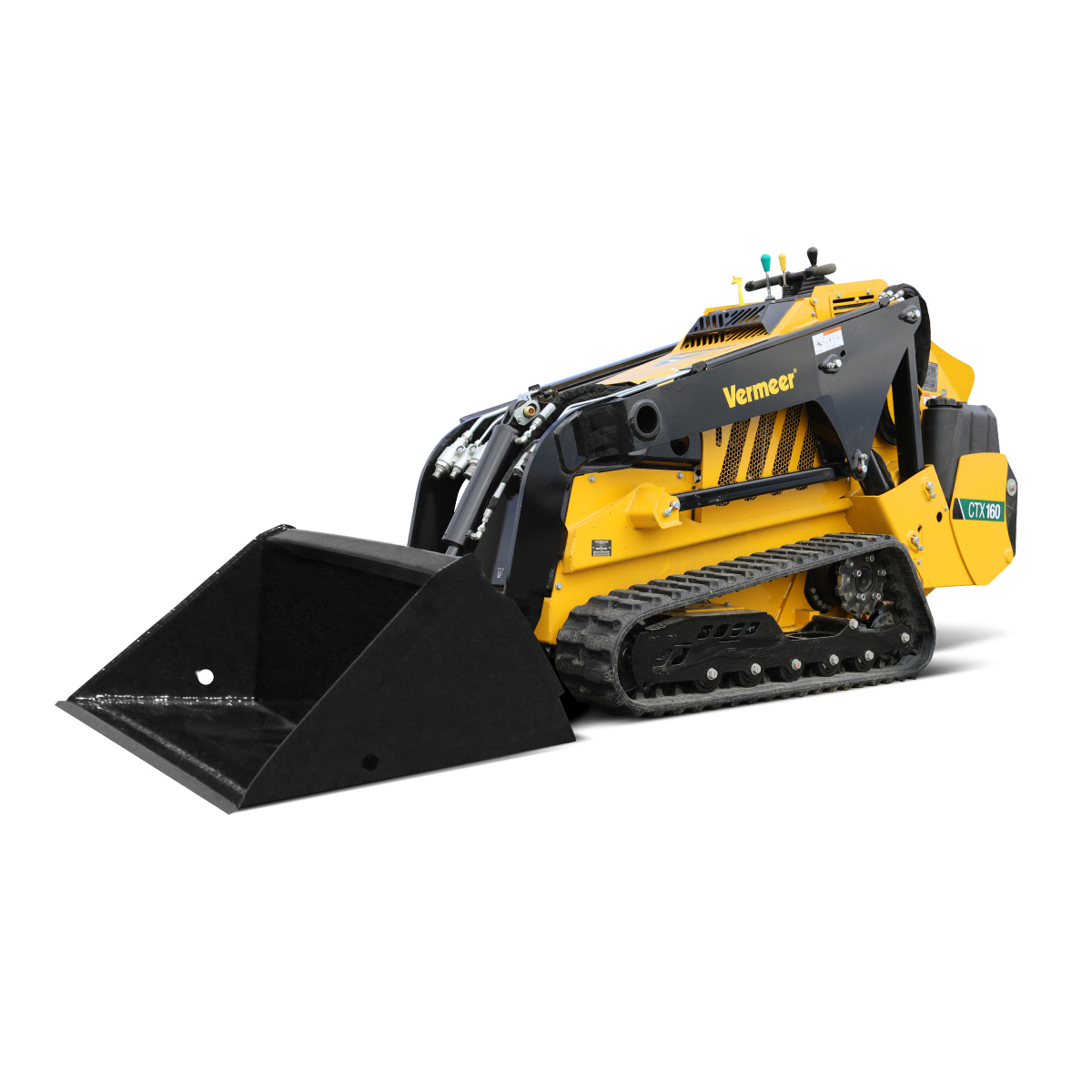

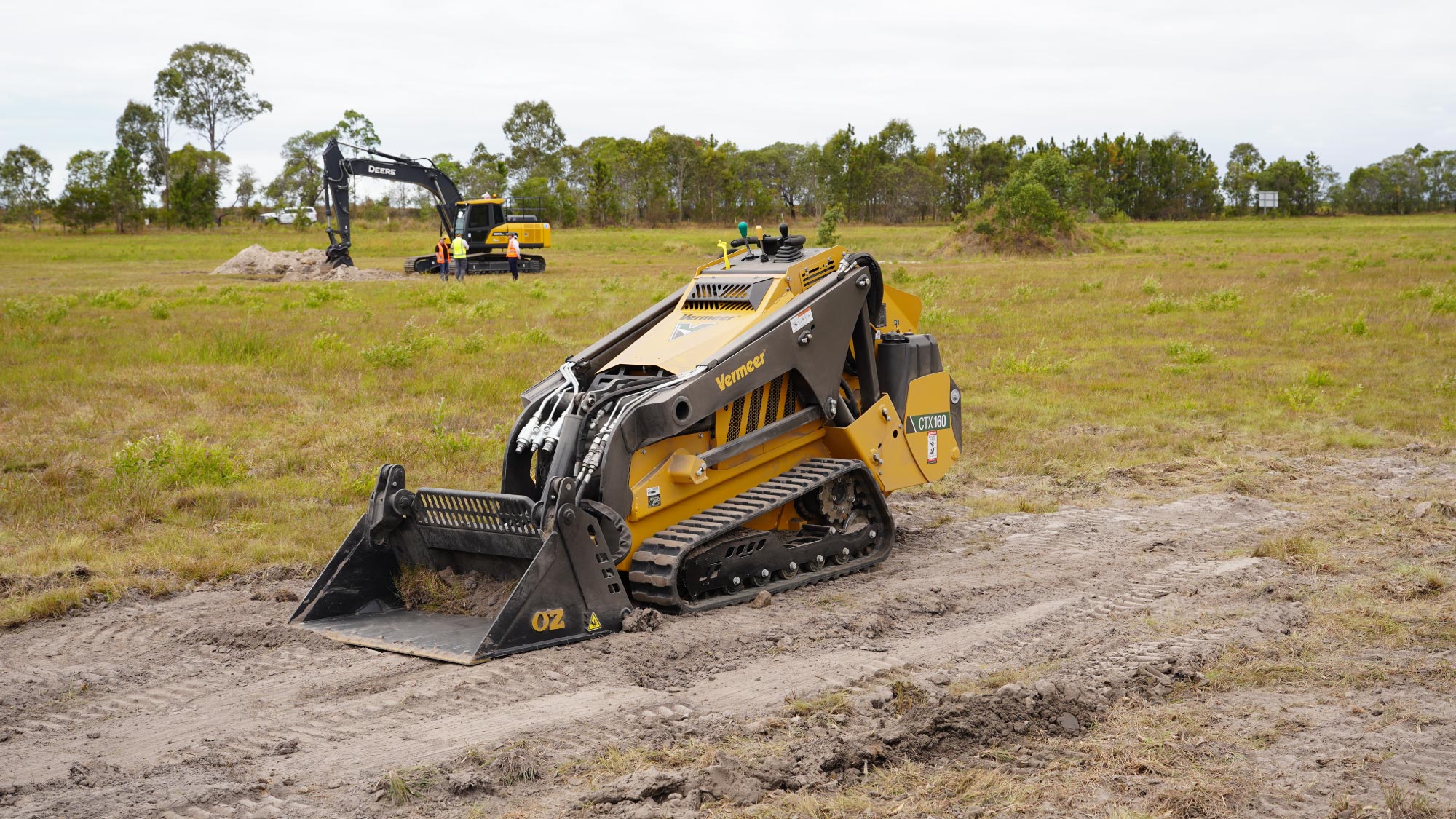

The new Vermeer CTX160 provides an ideal blend of lifting performance and compact body design.

Key Features

  • Equipped with a 40 hp (29.8 kW) turbocharged Kohler KDI diesel engine. This engine eliminates the need for a diesel particulate filter (DPF), reducing cost and complexity of the engine.
  • The vertical lift capability on the CTX160 boasts a rated (SAE) operating capacity of 1600 lb (725.7 kg) and a hinge pin height of 88.75 in (225.4 cm).
  • The universal attachment plate provides maximized productivity by giving the operator the ability to change attachments on challenging jobs.
  • Designed with comfort in mind, the chariot-style operator’s station is paired with operator presence on the CTX160, giving the operator confidence while working on demanding jobs.

General Dimensions and Weights

  • Design: Stand-on/Track drive
  • Length (With Standard Bucket): 116 inches / 294.9 cm
  • Length (Without Standard Bucket): 92.5 inches / 234.5 cm
  • Width (With Standard Bucket and 9″ Tracks): 42 inches / 106.7 cm
  • Height: 59 inches / 149.9 cm
  • Height (to Hinge Pin): 88.75 inches / 225.4 cm
  • Ground Clearance: 6.75 inches / 17.1 cm
  • Weight (Standard Bucket, Diesel Engine): 4115 lb / 1866.5 kg
  • Weight (No Bucket, Diesel Engine): 4000 lb / 1814.4 kg

Engine

  • Make and Model: Kohler KDI 1903
  • Fuel Type: Diesel
  • Fuel Tank Capacity: 14.5 gal / 54.9 L
  • Gross Horsepower: 40 hp / 29.8 kw
  • Cooling System: Liquid
  • Maximum Angle of Inclination: 30 deg

Track Performance

  • Rated Operating Capacity (SAE): 1600 lb / 725.7 kg
  • Tipping Capacity (With 165 lb [78.84 kg] operator): 4571 lb / 2073 kg
  • Travel Speed (Forward): 4.4 mph / 7.1km/h

Operational

  • Steering: Dual axis, pilot operated joystick
  • Lift: Dual axis, common bucket Lever
  • Curl: Dual axis, common bucket Lever

Hydraulic System

  • Hydraulic System High Flow: 16.7 gpm / 63.2 L/min
  • Hydraulic System Low Flow: 9.4 gpm / 35.6 L/min
  • Hydraulic System Pressure: 3045 psi / 209.9 bar
  • Tank capacity: 12 gal / 45.4 L
