MyDealer:S3 Navigator® Horizontal Directional Drill
- Weight: 22588.9 kg
- Fuel Type: Diesel
- Power: 275 hp (205.1 kw)
- Rotational Torque: 14,000 ft-lb
- Thrust Pullback: 100000 lbs
Features

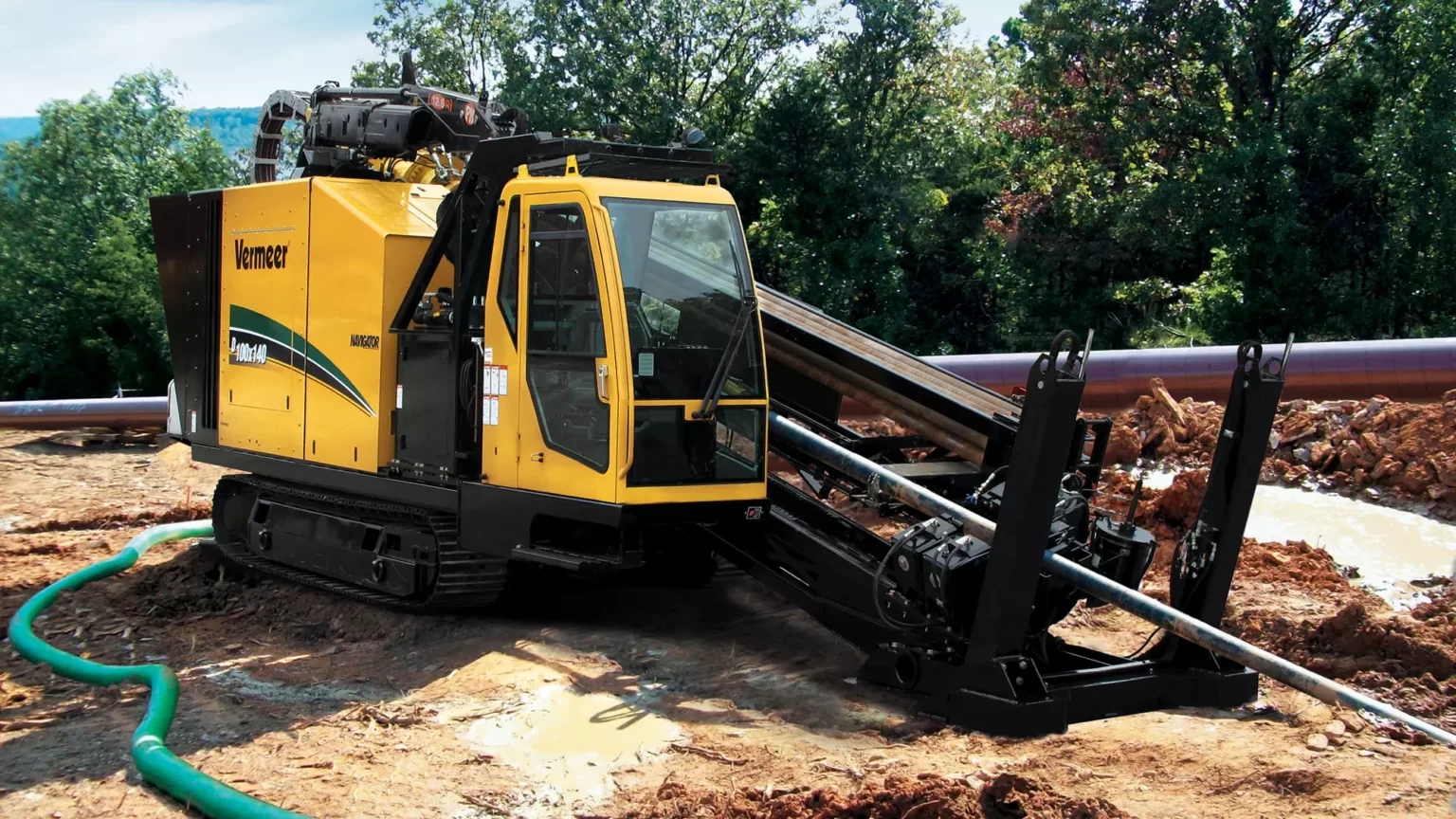

The D100x140 S3 Navigator® horizontal directional drill offers an exceptional one-two punch in response to your most challenging projects. To get you there and back, select between 15’ (4.6 m) or 20’ (6.1 m) lengths of 3.5” (8.9 cm) Firestick® drill rod. Consider the 15’ (4.6 m) to minimize your footprint, while selecting 20’ (6.1 m) will offer increased onboard rod carrying capacity.
Key Features
- With consideration to ease of use and safety, the D100x140 stackable rod box design allows additional rod to be loaded via the upper rod box. When matched with the optional onboard crane, no additional support equipment is required to load additional rod.
- The D100x140 is available with a wireless remote-controlled knuckle boom crane. At maximum reach of 19.5’ (6 m), the crane has a rated capacity of 3970 lb (1800.8 kg).
- State-of-the-art dual displays offer easy visibility to a wide range of machine performance, diagnostic and drilling information.
- Equipped with angled, true open-top vises with an 8” (20.3 cm) opening, the D100x140 offers good operator visibility during rod makeup/breakout. The true open-top design accommodates mud motors and other large tooling. Responsive and powerful clamping and breakout actions can boost cycle time efficiency.
General Dimensions and Weights
- Length (Minimum Transport): 358 inches / 909.3 cm
- Width (Minimum Transport): 100 inches / 254 cm
- Width (With Cab, Minimum Transport): 100 inches / 254 cm
- Height (Minimum Transport): 136 inches / 345.4 cm
- Height (With Cab): 136 inches / 345.4 cm
- Weight: 49800 lbs / 22588.9 kg
- Weight (Cab Option): 49800 lbs / 22588.9 kg
Engine
- Make and Model: CAT
- Fuel Type: Ultra low sulfur diesel
- Maximum Engine RPM: 2200 rpm
- Gross Horsepower: 275 hp / 205.1 kw
- Aspiration: Twin turbocharged
- Max Fuel Consumption: 15 gph / 56.8 lph
- Maximum Operating Angle (Fore/Aft)*: 25
- Maximum Operating Angle (Left/Right)*: 25
Operational
- Thrust: 100000 lbs / 444.8 kN
- Pullback: 100000 lbs / 444.8 kN
- Maximum Carriage Speed at Maximum Engine RPM: 175 ft/min / 53.3 m/min
- Maximum Spindle Torque (Low at Maximum Engine RPM): 14000 ft-lb / 18981.5 Nm
- Maximum Spindle Torque (Medium at Maximum Engine RPM): 10500 ft-lb / 14236.1 Nm
- Maximum Spindle Torque (High at Maximum Engine RPM): 7000 ft-lb / 9490.7 Nm
- Maximum Spindle Speed at Max Engine RPM: 203 rpm
- Minimum Bore Diameter: 6 inches / 15.2 cm
- Maximum Ground Drive Speed at Maximum Engine RPM: 2.8 mph / 4.5 km/h
- Automated Rod Loader: Semi-automated
- Noise Level at Operator’s Ear: 82 dB(a)
Fluid Capacities
- Fuel Tank: 120 gal / 454.2 L
- Hydraulic Tank: 90 gal / 340.7 L
- Hydraulic System: 120 gal / 454.2 L
Drilling Fluid System Option One
- Maximum Flow: 230 gpm / 870.6 L/min
- Maximum Pressure: 1100 psi / 75.8 bar
- Brand: Aplex
Drilling Fluid System Option Two
- Maximum Flow: 150 gpm / 567.8 L/min
- Maximum Pressure: 1100 psi / 75.8 bar
Crane
- Maximum Lifting Capacity: 5700 lbs / 2585.5 kg
- Maximum Lifting Capacity – Boom Extended/Max Reach: 4200 lbs / 1905.1 kg
- Rotation: 400 deg
- Maximum Reach: 19.5 inches / 49.5 cm
- Optional Crane: Yes
- Wireless Remote: Yes
