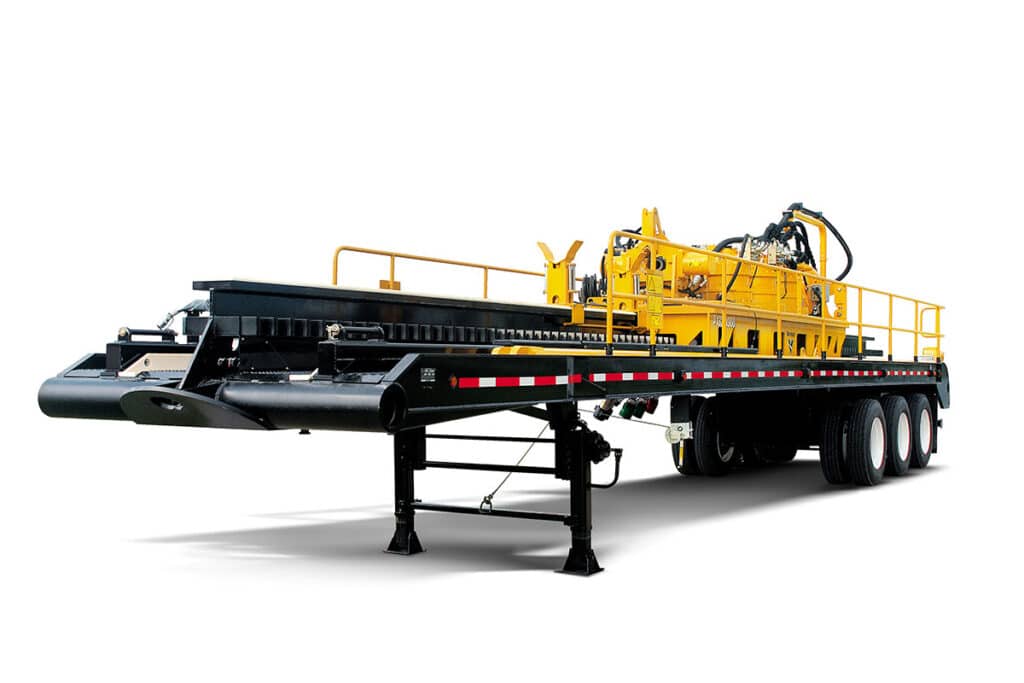

Navigator® Horizontal Directional Drill

  • Weight: 45812.8 kg
  • Fuel Type: Diesel
  • Power: 800 hp (596.6 kW), 1200 hp (894.8 kW) or 1600 hp (1193.1 kW)
  • Rotational Torque: 102,500 ft-lb
  • Thrust Pullback: 1,360,000 lbs

Features

Maximize your drilling muscle with the field-tested D1320x900. Loaded with feature after feature to improve performance, reliability, and durability, the D1320x900 is equipped with dominating twin Caterpillar C-27 engines.

Key Features

  • Operates efficiently with high-torque, low speed Hagglund hydraulic motors powering the rotary and carriage drives so you can run full torque and full rotary rpm simultaneously.
  • Reduces stress on the motor, because the thrust box bearing-pack assembly is designed to absorb the axial load caused by thrust and pullback.
  • Helps prevent rod wrap or wind-up because its floating vice allows the breakout system to clamp the full rod upsets during breakout of the lower and upper joints.

Drill Rack

  • Length (Minimum Transport): 50.5 foot / 15.4 m
  • Width: 8.5 foot / 2.6 m
  • Height (Minimum Transport): 11.5 foot / 3.5 m
  • Weight: 101000 lbs / 45812.8 kg
  • Suspension: Triple axle with air ride suspension
  • Front Base Anchor Length: 20 foot / 6.1 m
  • Front Base Anchor Width: 6 foot / 1.8 m
  • Front Base Anchor Height: 24 inches / 61 cm
  • Front Flat Anchor Length: 9.5 foot / 2.9 m
  • Front Flat Anchor Width: 5 foot / 1.5 m
  • Front Flat Anchor Height: 8 inches / 20.3 cm
  • Rear Base Anchor Length: 16 foot / 4.9 m
  • Rear Base Anchor Width: 7.8 foot / 2.4 m
  • Rear Base Anchor Height: 8 inches / 20.3 cm
  • Number of Rear Legs: 2
  • Drill Rack Angle: 8 degrees to 12 degrees

Driller Cabin

  • Length: 10 foot / 3.1 m
  • Width: 8.5 foot / 2.6 m
  • Height: 9 foot / 2.7 m
  • Weight: 6000 lbs / 2721.6 kg
  • Heat and Air Conditioning: In-wall combination unit

Power Pack Option One

  • Length: 22.4 foot / 6.8 m
  • Width: 8 foot / 2.4 m
  • Height: 10.3 foot / 3.1 m
  • Weight: 38000 lbs / 17236.5 kg
  • Make and Model: CAT C-27
  • Fuel Type: Diesel
  • Fuel Capacity: 500 gal / 1892.7 L
  • Hydraulic Tank Capacity: 720 gal / 2725.5 L
  • Maximum Engine RPM: 2000 rpm
  • Gross Horsepower: 800 hp / 596.6 kw
  • EPA Certification Family: Tier 2 (EU Stage II)

Power Pack Option Two

  • Length: 32.2 foot / 9.8 m
  • Width: 8 foot / 2.4 m
  • Height: 10.3 foot / 3.1 m
  • Weight: 57260 lbs / 25972.7 kg
  • Make and Model: CAT C-18
  • Fuel Type: Diesel
  • Fuel Capacity: 1000 gal / 3785.4 L
  • Hydraulic Tank Capacity: 720 gal / 2725.5 L
  • Maximum Engine RPM: 2000 rpm
  • Gross Horsepower: 1200 hp / 894.8 kw
  • EPA Certification Family: Tier 3 (EU Stage II)

Power Pack Option Three

  • Length: 32.2 foot / 9.8 m
  • Width: 8 foot / 2.4 m
  • Height: 10.3 foot / 3.1 m
  • Weight: 57260 lbs / 25972.7 kg
  • Make and Model: CAT C-27
  • Fuel Type: Diesel
  • Fuel Capacity: 1000 gal / 3785.4 L
  • Hydraulic Tank Capacity: 720 gal / 2725.5 L
  • Maximum Engine RPM: 2000 rpm
  • Gross Horsepower: 1600 hp / 1193.1 kw
  • EPA Certification Family: Tier 2 (EU Stage II)

Operational

  • Thrust: 1360000 lbs / 6049.6 kN
  • Pullback: 1360000 lbs / 6049.6 kN
  • Maximum Spindle Torque: 102500 ft-lb / 138971.6 Nm
  • Maximum Spindle Torque (Low at Maximum Engine RPM): 102500 ft-lb / 138971.6 Nm
  • Maximum Spindle Speed at Maximum Engine RPM (with PS800): 36 rpm
  • Maximum Spindle Speed at Maximum Engine RPM (with PS1200/PS1600): 54 rpm
  • Maximum Carriage Speed at Maximum Engine RPM: 64 ft/min / 19.5 m/min
  • Number of Rotation Motors: 1
  • Number of Drive Motors: 6
  • Mud Swivel: 3 inches / 7.6 cm

Lower Breakout Vise

  • Breakout Force: 253000 ft-lb / 343022.5 Nm
  • Configuration: 3-jaw clamp, 8 inches / 20.3 cm
  • Weight: 3800 lbs / 1723.7 kg
  • Travel: 6 foot / 1.8 m
  • Inside Diameter: 9.8 inches / 24.9 cm

Upper Breakout Vise

  • Clamp Force: 250000 ft-lb / 338955 Nm
  • Configuration: 2-jaw clamp
  • Inside Diameter: 10 inches / 25.4 cm

Safety

  • Remote Lockout: Yes
  • Strike Alert: Yes
