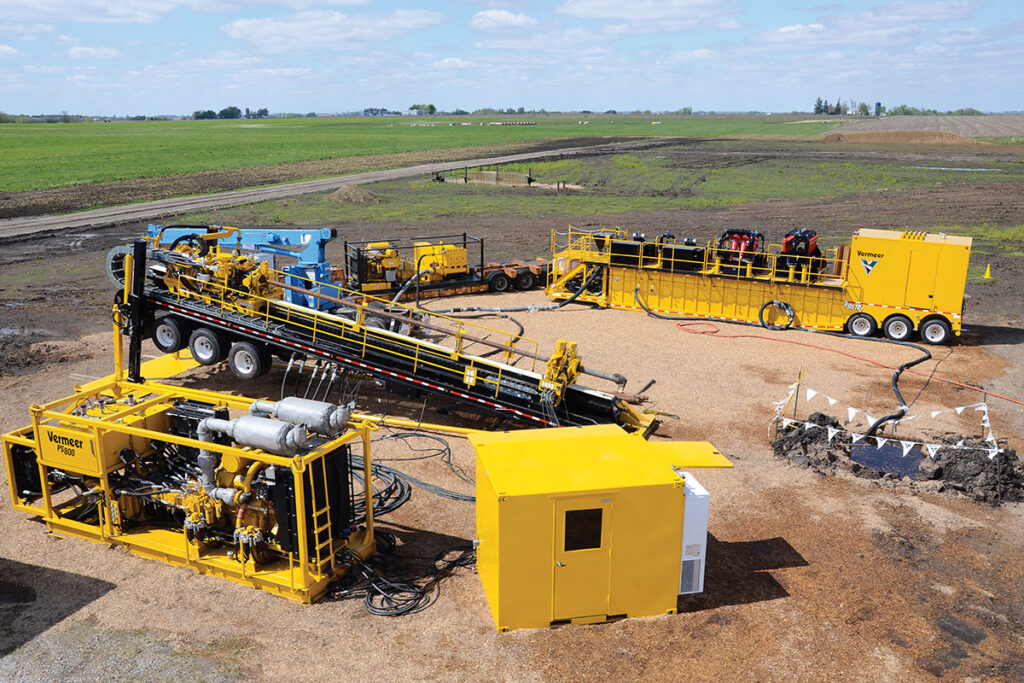

MyDealer:Navigator® Horizontal Directional Drill
- Weight: 37194.6 kg
- Fuel Type: Diesel
- Power: 800 hp (596.6 kW)
- Rotational Torque: 50,000 ft-lb
- Thrust Pullback: 500,000 lbs
Features
Conquer difficult ground conditions with a high-torque design. Field-tested to prove it can handle the toughest large-diameter projects, the D500x500 is equipped with all the features HDD operators need to get the job done. It drills through almost any ground conditions with 50,000 ft-lb/68,000 Nm of rotational torque and 500,000 lbs/2,224 kN of thrust/pullback.
Key Features

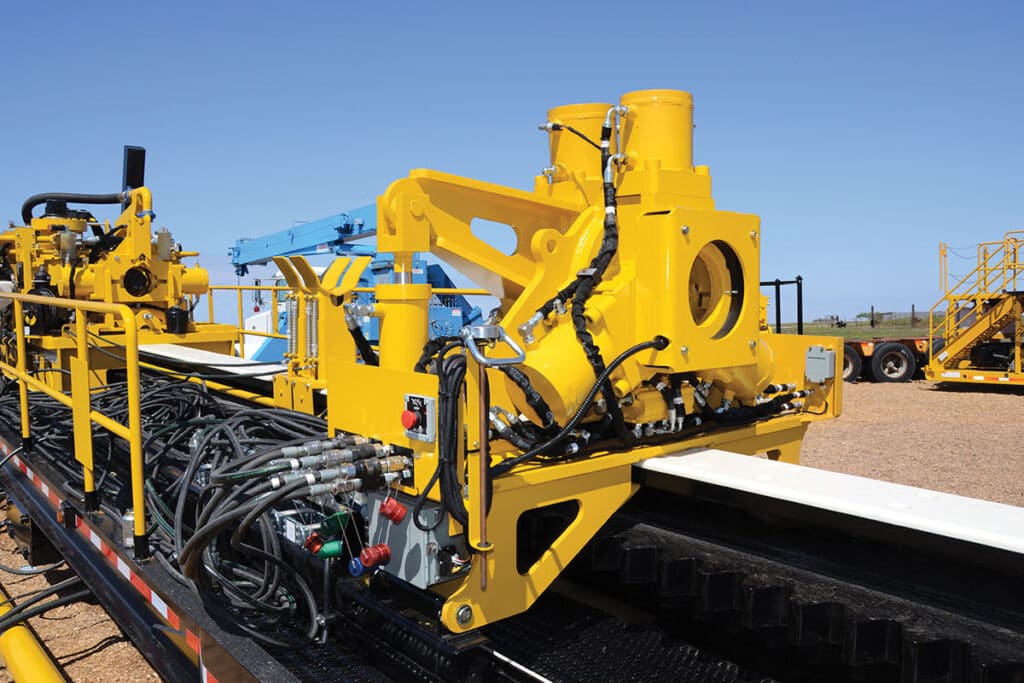

- Operates efficiently with high-torque, low speed Hagglund hydraulic motors powering the rotary and carriage drives so you can run full torque and full rotary rpm simultaneously.
- Reduces stress on the motor, because the thrust box bearing-pack assembly is designed to absorb the axial load caused by thrust and pullback.
- Helps prevent rod wrap or wind-up because its floating vice allows the breakout system to clamp the full rod upsets during breakout of the lower and upper joints.
- Muscles through difficult ground formations with higher torque than other models.
Drill Rack
- Length (Minimum Transport): 45 foot / 13.7 m
- Width: 8.5 foot / 2.6 m
- Height (Minimum Transport): 11.5 foot / 3.5 m
- Weight: 82000 lbs / 37194.6 kg
- Suspension: Dual axle with air ride suspension
- Front Base Anchor Length: 20 foot / 6.1 m
- Front Base Anchor Width: 6 foot / 1.8 m
- Front Base Anchor Height: 24 inches / 61 cm
- Front Flat Anchor Length: 9.5 foot / 2.9 m
- Front Flat Anchor Width: 5 foot / 1.5 m
- Front Flat Anchor Height: 8 inches / 20.3 cm
- Rear Base Anchor Length: 16 foot / 4.9 m
- Rear Base Anchor Width: 7.8 foot / 2.4 m
- Rear Base Anchor Height: 8 inches / 20.3 cm
- Number of Rear Legs: 2
- Drill Rack Angle: 8 degrees to 12 degrees
Driller Cabin
- Length: 10 foot / 3.1 m
- Width: 8 foot / 2.4 m
- Height: 8 foot / 2.4 m
- Weight: 6000 lbs / 2721.6 kg
- Heat and Air Conditioning: In-wall combination unit
Power Pack
- Length: 22.4 foot / 6.8 m
- Width: 8 foot / 2.4 m
- Height: 10.3 foot / 3.1 m
- Weight: 38000 lbs / 17236.5 kg
- Make and Model: CAT C-27
- Fuel Type: Diesel
- Fuel Capacity: 500 gal / 1892.7 L
- Hydraulic Tank Capacity: 720 gal / 2725.5 L
- Maximum Engine RPM: 2000 rpm
- Gross Horsepower: 800 hp / 596.6 kw
- EPA Certification Family: Tier 2 (EU Stage II)
Operational
- Thrust: 500000 lbs / 2224.1 kN
- Pullback: 500000 lbs / 2224.1 kN
- Maximum Spindle Torque: 50000 ft-lb / 67791 Nm
- Maximum Spindle Torque (Low at Maximum Engine RPM): 50000 ft-lb / 67791 Nm
- Maximum Spindle Speed at Maximum Engine RPM (with PS800): 36 rpm
- Maximum Carriage Speed at Maximum Engine RPM: 64 ft/min / 19.5 m/min
- Number of Rotation Motors: 1
- Number of Drive Motors: 2
- Mud Swivel: 3 inches / 7.6 cm
Lower Breakout Vise
- Breakout Force: 253000 ft-lb / 343022.5 Nm
- Configuration: 3-jaw clamp, 8 inches / 20.3 cm
- Weight: 3800 lbs / 1723.7 kg
- Travel: 6 foot / 1.8 m
- Inside Diameter: 9.8 inches / 24.9 cm
Upper Breakout Vise
- Clamp Force: 250000 ft-lb / 338955 Nm
- Configuration: 2-jaw clamp
- Inside Diameter: 10 inches / 25.4 cm
Safety
- Remote Lockout: Yes
- Strike Alert: Yes
