Vermeer VX30-250 trailer vacuum excavator in Brisbane

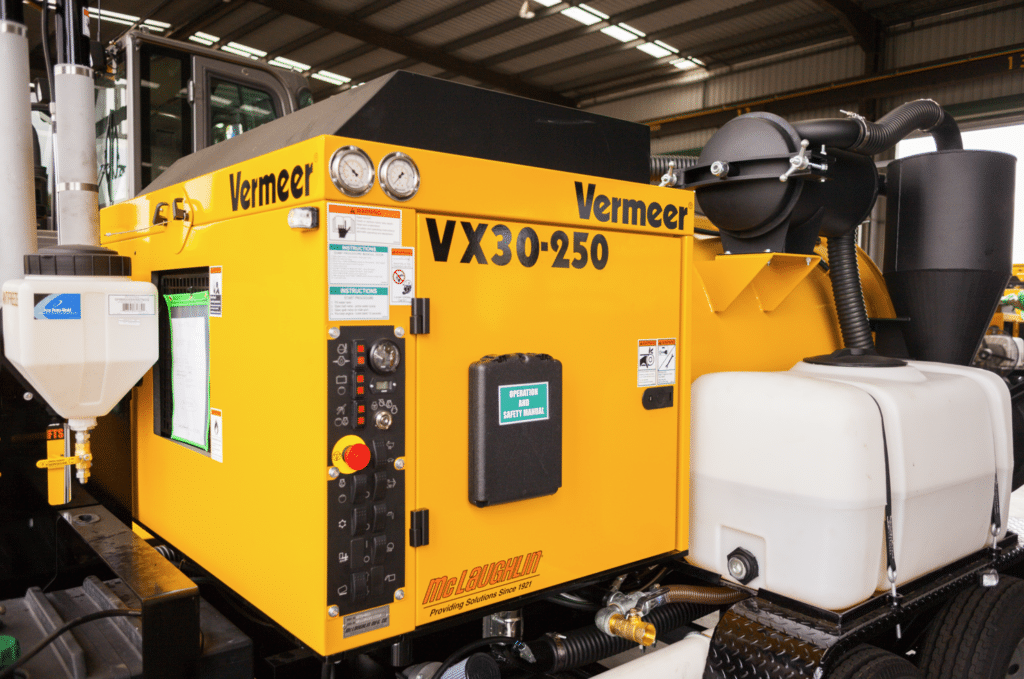

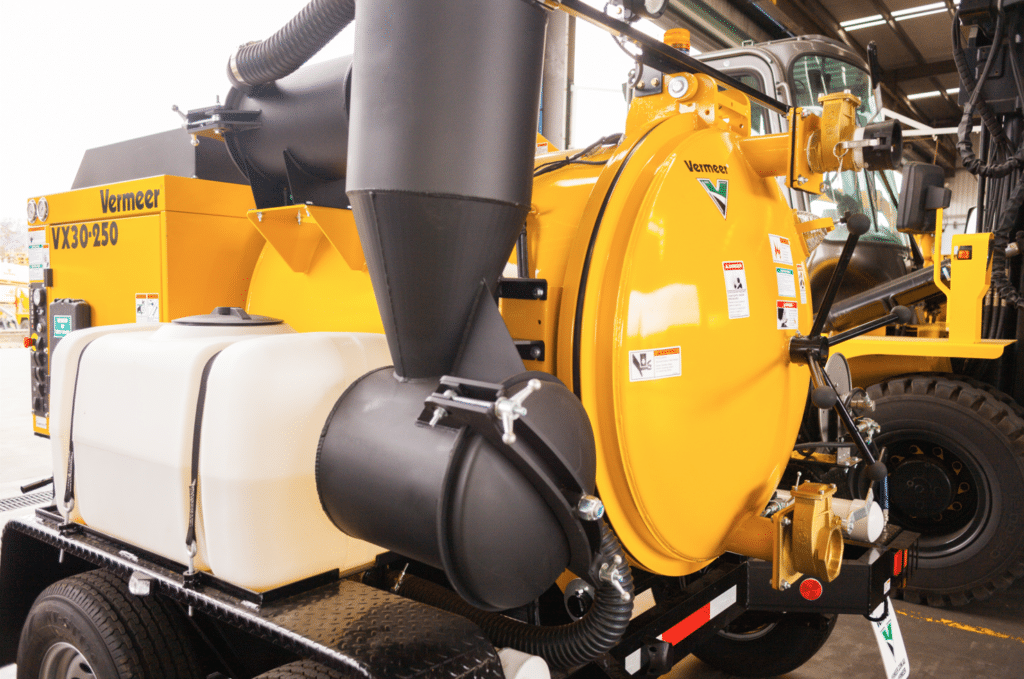

VX30-250 Vacuum Excavator

VX30-250 Vacuum Excavator


The VX30-250 offers a low-cost, highly portable system for potholing, valve box clean out and a range of non-destructive digging tasks in industries including water, gas and fibre installation.

Fuel TypeDiesel

Power31 hp (23.1 kW)

Capacity250 gal spoil, two 50 gal water saddle tanks

Blower Output575 CFM blower output

Maximum Vacuum15 in'Hg

Case Study

Coates Hire


VX30-250 Vacuum Excavator

Coates Hire adds 29 Vermeer vacuum excavators to it’s national fleet

Australia's largest equipment hire company has recently added 29 new Vermeer VX30-250 trailer-mounted vacuum excavators to its Pipeline Testing Hire fleet to meet the ever-growing demand for cost-effective and versatile non-destructive digging solutions in the Engineering, Building Construction, Maintenance, Mining and Resources sectors.

Posted Tuesday, March 24, 2015 in Case Studies:
[Hire & Rental case studies]

Would you like to know more?

VX30-250 Vacuum Excavator Videos

Key features

  • THE VX30-250 vacuum excavator offers municipalities and contractors a low-cost, portable system for potholing and vacuum applications such as hydro excavation and liquid vacuum recovery.
  • The VX30-250 features convenient curbside controls for domestic and international use.
  • Saves you cleanup time and makes it easier to remove difficult debris as it delivers a high-pressure water spray to the tank interior while simultaneously dumping material.
  • Integrated silencing system for quieter operation by dampening sound before it’s released into the atmosphere using an external engine compartment baffle system.
  • Reduces the risk of material entering the blower - in turn, adding greater longevity to your system.

Machine Specifications

Weights and Dimensions
Trailer GVW 9850 lb 4467.9 kg
Trailer Empty Weight 4519 lb 2050 kg
Trailer Axles Two 6000 lb tandem with electric brakes Two 2721 kg tandem with electric brakes
Trailer Unit Length 152 inches 386 cm
Trailer Unit Width 87 inches 221 cm
Trailer Unit Height 83 inches 211 cm
Spoil Tank Capacity 250 gal 946.4 L
Engine 31 hp Yanmar diesel 23.1 kW
Blower 575 cfm Lobe type with dual-splash oil lubrication 16.3 m3/min
Maximum Vacuum 15” Hg 381 mm Hg
Water Tank Capacity Two 50 gal saddle tanks Two 189 L saddle tanks
Water Pump 5.6 gpm @ 3000 psi 21.2 L/min @ 206.8 bar
Filtration 3-stage with cyclone separator & 2-micron poly filter
Controls Australian kerb-side electric start and throttle, full spoil tank override, water pump clutch
Gauges Australian kerb-side fuel level, vacuum, water pressure, hour meter
Enclosure Lockable, sound-dampening
Door Type Full open, manual
Fuel Tank 20 gal 76 L
Full spoil tank shutoff Electronic float, ball float back up
Spoil Tank Lift Dual hydraulic cylinders
Vacuum Hose 18’ of 3” - two 9’ sections 5.5m of 7.6m - two 2.7m sections
Low Water Shutoff Electronic
