HG6800TX Tracked Horizontal Grinder

Tracked Horizontal Grinder

Length: 14.7 m (Transport)
Width: 3.1 m (Transport)
Height: 3.7 m (Transport)
Weight: 41,730 kg
Fuel Type: Diesel
Power: 950 hp (708 kw)

Request a Quote

Find Nearest Branch Download Brochure

Features

Built for land-clearing and pipeline right-of-way operations, the HG6800TX horizontal grinder offers a high-horsepower engine on a tracked machine with a compact design.

Key Features

Featuring 950 hp (708 kW) in a 92,000 lb (41,730.5 kg) class, and an infeed design designed specifically for feeding larger materials such as whole trees and large stumps, the new grinder is built to power through tough materials with less operator interaction.
The Series III hard-faced duplex drum offers durability and convenient maintenance, with the ability to remove and replace single hammers and balance the drum externally.
Low-side walls aid in feeding whole trees and other larger materials with less restriction, reducing the need for operator interaction with the material.
The SmartFeed system monitors engine rpm and adjusts grinding speed for optimal machine performance.
The optional Damage Defense system reduces the likelihood of certain metal contaminants from entering the hammermill by reacting to the initial contact with the contaminant and reversing the feed system to allow the removal of the contaminant.
The feed roller can climb up to 50” (127 cm), helping the machine crush logs or stumps that need to be rolled, and allowing the operator flexibility for different material inputs.
Change screens easily utilizing the optional screen hoist and the remote control or main machine controls.

General Dimensions and Lengths

Maximum Length – Transport: 48.1 ft / 14.7 m
Maximum Length – Transport with Dolly: 48.6 ft / 14.8 m
Maximum Length (Operation): 56.5 ft / 17.2 m
Maximum Width Transport – with Dolly: 10 ft / 3 m
Weight: 92,000 lbs / 41,730.5 kg
Tongue Weight – Engine Option 1 with Dolly: 45,000 lbs / 20,411.7 kg
Axle Weight – Engine Option 1 with Dolly: 60,000 lbs / 27,215.5 kg
Dolly Weight: 9500 lbs / 4309.1 kg

Engine Option One

Make and Model: Caterpillar C27 Tier 4F (Stage 4)
Number of Cylinders: 12
Gross Horsepower (Maximum): 950 hp / 708.4 kW
Torque (Max): 3212 ft-lb / 4354.9 Nm
Fuel Tank Capacity: 350 gal / 1324.9 L
Max Fuel Consumption: 47.5 gph / 179.8 lph
Fuel Type: Ultra-low sulfer diesel (<15 ppm)
Air Cleaner: Dry-type with primary and secondary elements and restriction indicator
Oil Filter: Full-flow, spin-on
Recommended Oil: CAT DEO-ULS, or API CJ-4, or ACEA E9 (15w-40)
Oil Volume with Filter: 71.9 qt / 68 L
Cooling Medium: Liquid
Coolant Capacity (Engine and Radiator): 45 gal / 170.3 L
Alternator: 24 Volt
Fan: (Qty 2) Variable-speed, reversible
Clutch Type: Hydraulic-operated wet clutch with PTO
Clutch Engagement: Push-button
Drive Belt Type: V-belt

Engine Option Two

Make and Model: Caterpillar C27 Tier 2 (Stage II)
Number of Cylinders: 12
Gross Horsepower (Maximum): 950 hp / 708.4 kw
Torque (Max): 3212 ft-lb / 4354.9 Nm
Fuel Tank Capacity: 350 gal / 1324.9 L
Max Fuel Consumption: 47.7 gph / 180.6 lph
Fuel Type: Diesel
Air Cleaner: Dry-type with primary and secondary elements and restriction indicator
Oil Filter: Full-flow, spin-on
Recommended Oil: CAT DEO-ULS, or API CJ-4, or ACEA E9 (15w-40)
Oil Volume with Filter: 71.9 qt / 68 L
Cooling Medium: Liquid
Coolant Capacity (Engine and Radiator): 45 gal / 170.3 L
Air to Boil Temperature: 126 deg
Alternator: 24 Volt
Fan: (Qty 2) Hydraulically driven, reversible
Clutch Type: Hydraulic operated wet clutch with PTO
Clutch Engagement: Push-button
Drive Belt Type: V-belt
Sound Power: 120 dB(A)

Infeed roller

Feed Table Width: 60 inches / 152.4 cm
Feed Table Length: 19 foot / 5.8 m
Loading Height: 6 foot / 1.8 m
Feed Conveyor Type: Welded slat chain
Drive Type: Radial piston motor
Infeed Roller Width: 56.3 inches / 143 cm
Infeed Roller Weight: 2460 lbs / 1115.8 kg
Maximum Feed Height: 50 inches / 127 cm

Safety System

Thrown Object Deflector: Standard
Deflector Position: Variable

Duplex Drum

Millbox Opening: 60 inches W x 38 inches H / 152.4 cm W x 96.5 cm H
Drum Diameter: 28 inches / 71.1 cm
Tip Diameter: 36.4 inches / 92.5 cm
Drum Cutting Width: 62.4 inches / 158.5 cm
Drum Skin Thickness: 1.5 inches / 3.8 cm
Drum Speed: 1200 rpm
Bearing Type: Double row, spherical roller
Bearing – Inner Race Diameter: 6 inches / 15.2 cm
Number of Hammers: 10
Number of Tips: 20
Center Retention Pin Dimensions: 2 inches diameter x 79.35 inches L / 5.1 cm diameter x 201.5 cm L

Screens

Screen Weight: 470 lbs / 213.2 kg
Screen Dimensions: 1 inch thick / 2.54 cm thick
Screen Type: Abrasion-resistant steel
Number of Screens: 2
Screen Area: 3583 sq in / 23116.1 sq cm
Millbox Lid Liner Dimensions: Abrasion resistant steel
Liner Dimensions: 0.75 inch, 1 inch thick / 1.9 cm, 2.5 cm thick
Anvil Type: Fabricated steel with replaceable wear surfaces
Anvil Dimensions: 6.6 inches x 18.2 inches x 81 inches / 16.7 cm x 46.2 cm x 205.7 cm

Discharge System - Single Belt Design

Length: 89.3 ft / 27.2 m
Width: 48 inches / 121.9 cm
Belt Design: 3 ply – 330# or straight warp single ply 330# both with V cleat
Splice: R2-stainless steel or super splice
Return Roller Quantity: 6
Idler Roller Diameter: 12 inches / 30.5 cm
Idler Roller Bearing: 1-15/16, 4-bolt flange
Standard Drive Roller Diameter: 12.8 inches / 32.5 cm
Magnetic Drive Roller Diameter: 12.8 inches / 32.5 cm
Drive Motor: Fixed displacement, geroler
Drive Motor Bearings: 1-15/16, 4-bolt flange
Belt Speed: 877 ft/min / 267.3 m/min
Load Height: 16.3 ft / 5 m

Hydraulic System

Tank capacity: 100 gal / 378.5 L
Recommended Oil: Vermeer HyPower 68
Filtration Method: Dual in-tank return filters with suction strainer
Number of Coolers: 1

Implement Hydraulics

System Type: Open-loop, pressure- and flow-compensated
Pump Type: Variable displacement, axial piston
Pump Flow at Maximum RPM: 63.3 gpm
System Relief Pressure: 4200 psi

Discharge Conveyor Hydraulics

System Type: Open-loop, pressure- and flow-compensated
Pump Type: Variable displacement, axial piston
Pump Flow at Maximum RPM: 32.3 gpm / 122.3 L/min
System Relief Pressure: 3000 psi
Motor Series: Char-Lyn 6000 Series, geroler

Fan Drive Hydraulics

System Type: Open-loop, pressure compensated
Pump Type: Variable displacement, axial piston
Pump Flow at Maximum RPM: 25.7 gpm / 97.3 L/min
Motor Series: Danfoss KM38
Fan Series – FWD/REV: Reversible

Clutch

Tank capacity: 21 gal / 79.5 L
Recommended Oil: Vermeer VMF Gold
Filtration Method: Spin-on, pressure filter, B6 = 1000
Number of Coolers: 1
System Type: Open-loop
Pump Type: Fixed displacement, gear pump
Pump Flow at Maximum RPM: 8.9 gpm / 33.7 L/min
System relief pressure: 260 psi / 17.9 bar

Electrical System

System Voltage: 24 VDC
Battery: Group 8-D, 1400 CCA (Qty 2)
System Protection: Fused

Control Station

Display Type: LCD
Engine Information: Yes
Machine Information: Yes
Operational Faults: Yes
Gauges: None
Switches: Push button

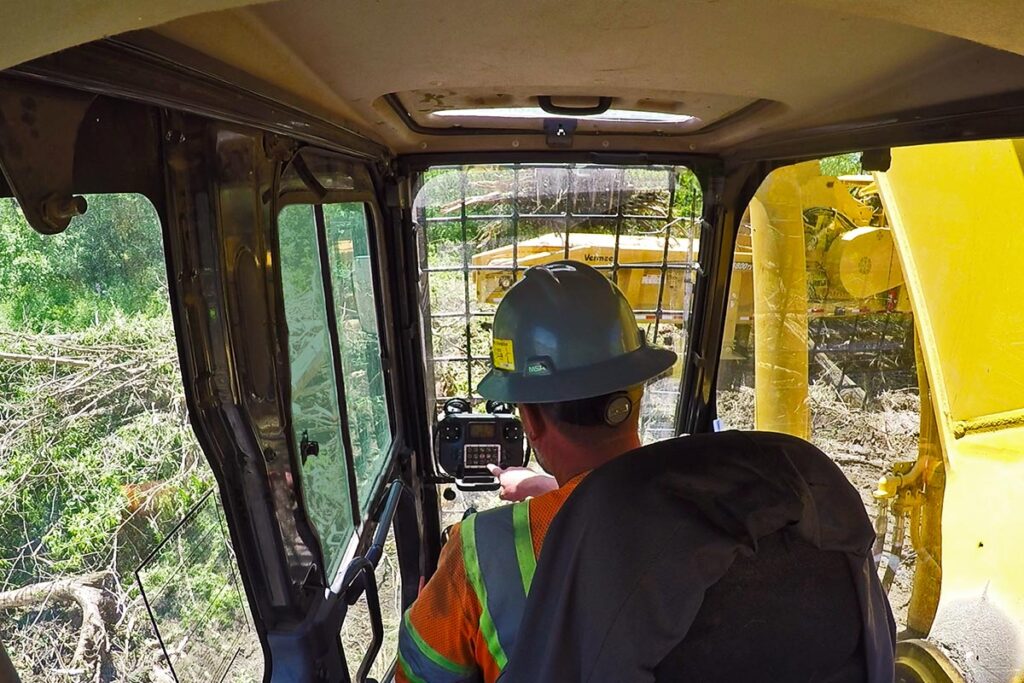

Radio Remote Control

Display Type: LCD
Engine Information: Yes
Machine Information: Yes
Operational Faults: Yes
Switches: Sealed membrane
Operating Range: Up to 300 ft / 91.4m
Battery Type: AA (qty 6)

Chassis

Frame Description: DT6
Tongue Description: Bolt-on to infeed structure
Hitch Type: Fifth wheel
Fender Description: Formed steel
Brake Type: Air-actuated with spring-applied parking brake
Trailer Light Type: 12-24 V LED

Axle/Suspension

Suspension Type: Air-ride
Manufacturer – Option One: Hendrickson
Capacity per Axle: 20000 lbs / 9071.8 kg
Number of Axles: 3
Tires – Option One: 255/70R22.5 duals
Wheels – Option One: 22.5 inches x 8.3 inches Hub-piloted steel / 57.2 cm x 21 cm
Ground Clearance – Option One: 5.3 inches / 13.5 cm

Tracks

Track Frame Description: Rigid frame with reinforced box section
Track Type: D5 double grouser
Track Drive Pump Type: Variable displacement, axial piston
Track Brake Type: Spring-applied, hydraulic-release wet disc parking brake
Track Length on Ground: 142 inches / 360.7 cm
Track Width – Option One: 26 inches / 66 cm
Track Width Option One – Ground Bearing Pressure – Hard Ground: 58.3 psi / 402 kPa
Track Width Option One – Ground Bearing Pressure – Soft Ground: 11.4 psi / 78.6 kPa
Type of Idler: D5 excavator rollers
Number of Idlers: 20
Pump Flow at Maximum RPM: 57.6 gpm / 218 L/min
System relief pressure: 5000 psi / 344.7 bar
Maximum Speed: 2.8 mph / 4.5 km/h
Low Speed Travel in Creep Mode: 1.4 mph / 2.3 km/h
