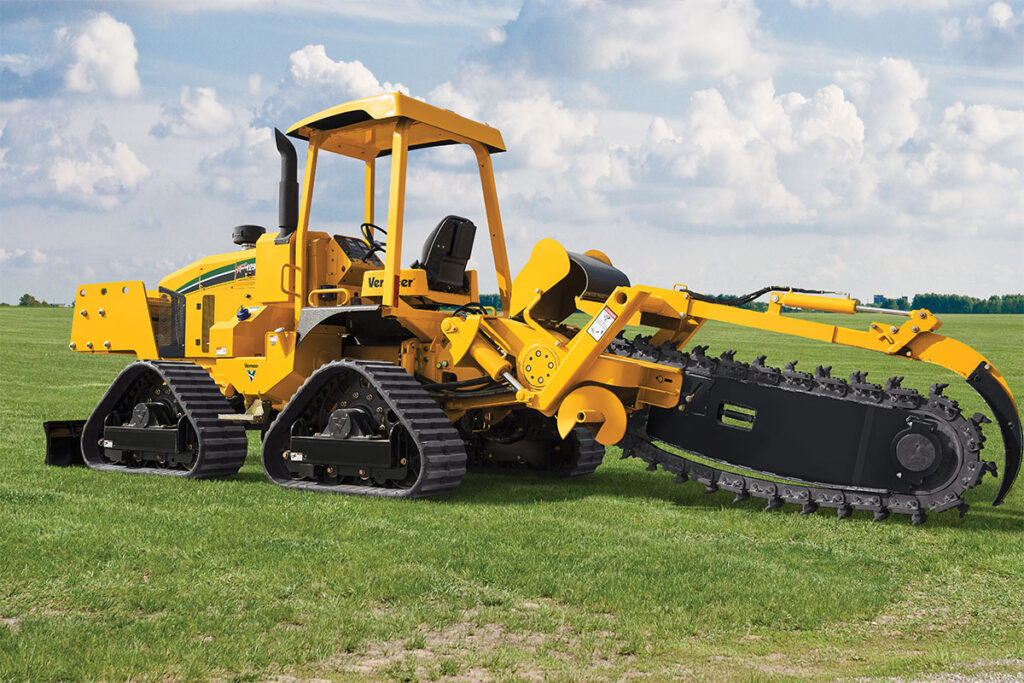

Ride-on Trencher

  • Fuel Type: Diesel
  • Power: 120 hp (89.5 kW)

Features

Work in a broader range of soil conditions and virtually any weather with the RTX1250 with optional cab. The patent-pending quad track system floats over muddy, sandy and other soft soils with extra stability and maneuverability.

Key Features

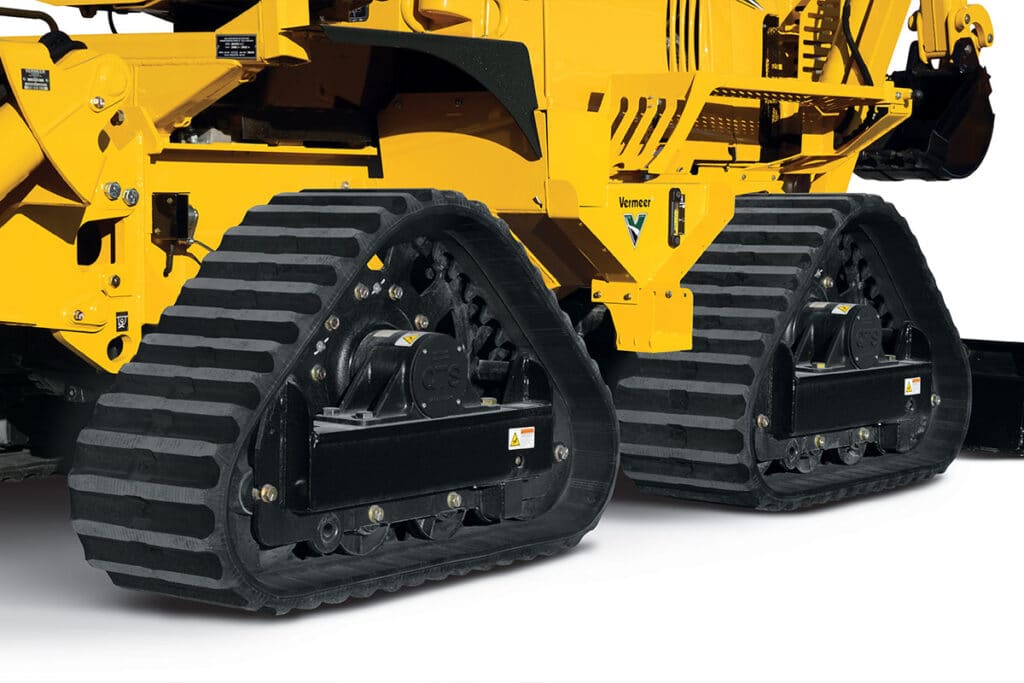

  • QUAD TRACK ADVANTAGE. The optional quad track system offers improved floatation, reduced surface damage, increased tractive effort and greater stability.

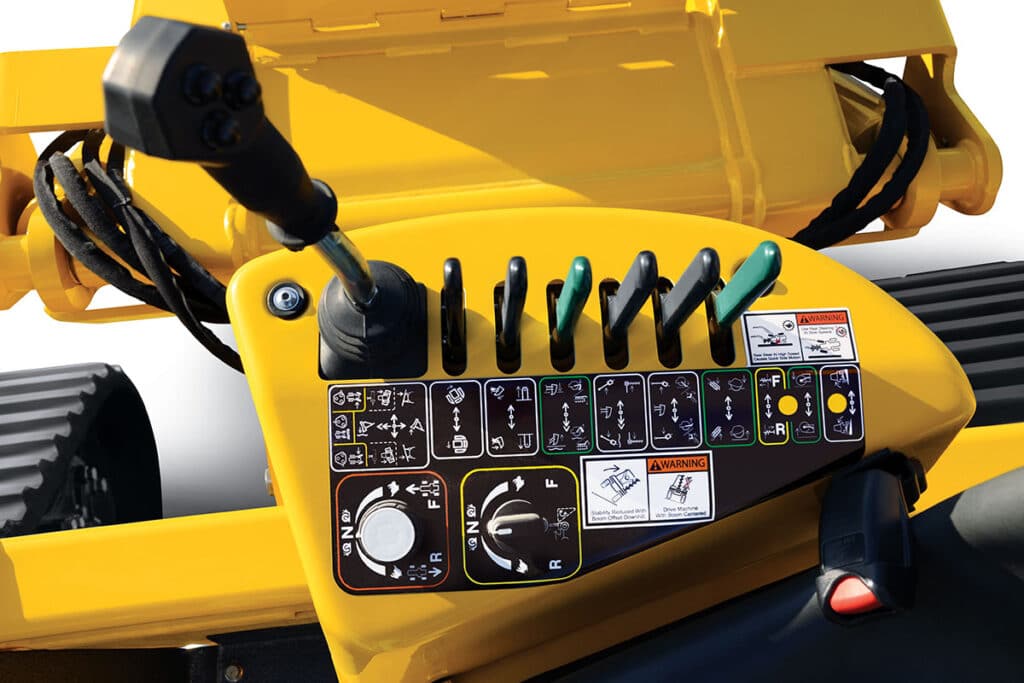

  • IN CONTROL. Common controls across the entire RTX lineup help operators become more efficient and productive and help lessen training time.
  • AN ATTACHMENT FOR EVERY JOB. The RTX1250 has an arsenal of attachments — including rockwheels, plows, combos and trenchers — to match many applications.
  • MAKE SENSE OF YOUR TRENCH. When difficult ground conditions cause a sudden drop in engine speed, the TrenchSenseTM electronic control system automatically pauses the tractor’s forward motion to prevent engine shutdown and recalibration of the controls. Once the preset speed recovers, forward AutoCreep resumes.

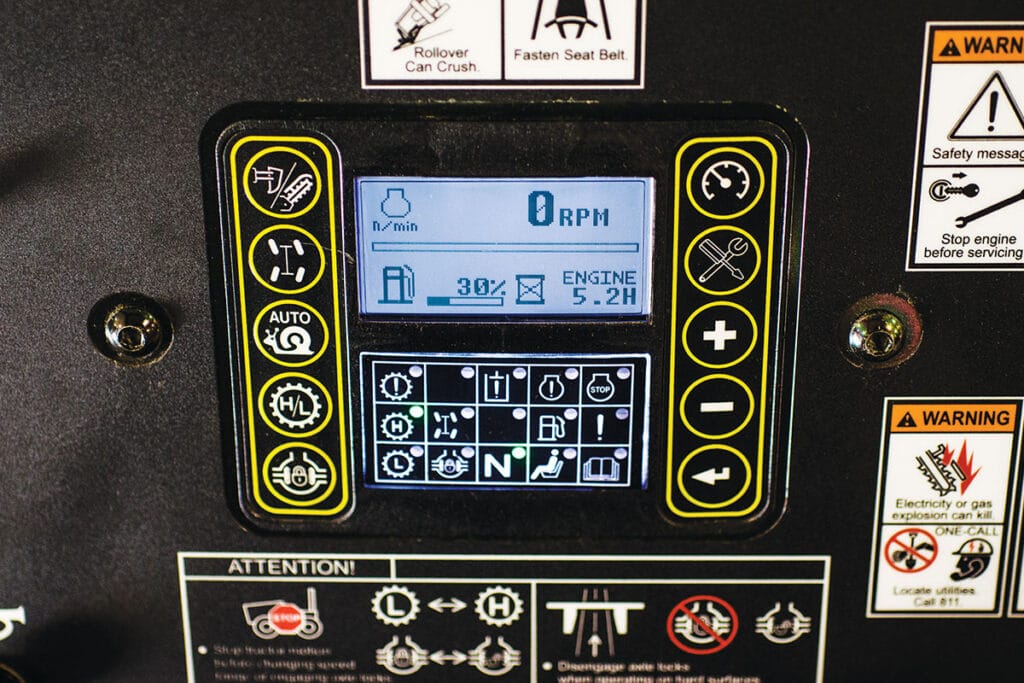

  • KNOWLEDGE ON DISPLAY. An integrated display allows the operator to optimize machine performance by adjusting operating attachment and ground drive parameters using machine diagnostic information — including engine rpm, fuel level, battery voltage, engine coolant temperature and engine hours.
  • INCREASED POWER. When the RTX1250 engine drops from 2500 rpm to 2300 rpm under load, the horsepower increases from 120 hp (89 kW) to 127 hp (95 kW), allowing the ride-on tractor to run at maximum horsepower in work mode.

Basic Unit

  • Length base tractor w/ backfill blade: 149.5 inches / 379.7 cm
  • Width: 86 inches / 218.4 cm
  • Wheel Base: 76 inches / 193 cm
  • Ground Clearance: 14 inches / 35.6 cm
  • ROPS Rating: 20,000 lbs.

Engine

  • Make and Model: Cummins QSB3.9 TAA
  • Gross Horsepower: 120 hp / 89.5 kw
  • Fuel Type: Diesel
  • *Horsepower (gross)*: 125 hp / 93.2 kw
  • *Horsepower (net)*: 120 hp / 89.5 kw
  • Maximum Torque: 305 ft-lb / 413.5 Nm
  • Displacement: 238 cu-in / 3.9 L
  • Number of Cylinders: 4
  • Cooling Method: Liquid
  • Aspiration: Turbocharged & Charge Air Cooled
  • Max Operating Angle (fore & aft): 45 deg
  • Max Operating Angle (left & right): 45 deg
  • Air Cleaner: Donaldson
  • Coolant Capacity: 26 qt / 24.6 L

Electrical

  • System Voltage:  12 volt
  • Battery CCA Rating: 1000 cca
  • Alternator: 95 amp
  • Optional Dual Battery: Yes

Capacities

  • Fuel Tank Capacities: 38 gal / 143.8 L
  • Engine Oil with Filter: 12 qt / 11.4 L
  • Hydraulic Tank: 30 gal / 113.6 L
  • Hydraulic System: 33 gal / 124.9 L
  • Hydraulic System: 33 gal / 124.9 L
  • Fuel Consumption: 5.84 gph / 22.1 lph

Ground Drive

  • Ground Drive Type: Hydrostatic

Brakes

  • Parking Type: Spring Applied, Hyd Released

Steering

  • Type: 12
  • Outside Turning Diameter (front steer only): 40 ft / 12.2 m
  • Outside Turning Diameter (front & rear steer): 23 ft / 7 m
  • Rear Steer Control Type: 12

Plow

  • Model Name: VP1250
  • Weight includes blade: 12 lbs / 5.4 kg
  • Plow Swing Angle: 12 deg
  • Offset from Centerline: 12 inches / 30.5 cm

Rockwheel

  • Model Name: RW1240
  • Drive Type: Hydrostatic
  • Weight – less teeth: 6845 lbs / 3104.8 kg
  • Maximum Cutting Depth: 40 inches / 101.6 cm
  • Maximum Cutting Width: 8 inches / 20.3 cm
  • Minimum Cutting Width: 4 inches / 10.2 cm

Backhoe

  • Model Name: B930A
  • Weight With Largest Bucket: 1910 lbs / 866.4 kg
  • Leveling Angle: 20 deg

Backfill Blade

  • Maximum Height: 16 inches / 40.6 cm
  • Maximum Swing Angle: 30 deg
  • Maximum Lift Above Ground: 12 inches / 30.5 cm
  • Maximum Drop Below Ground: 12 inches / 30.5 cm
  • Maximum Tilt Angle: 12 deg
  • Angle of Approach: 12 deg

Reel Carrier

  • Model Name: RC1250
  • Weight: 1182 lbs / 536.1 kg
  • Maximum Reel Width: 54 inches / 137.2 cm
  • Maximum Reel Lifting Capacity: 12 lbs / 5.4 kg
  • Capacity: 3000 lbs / 1360.8 kg
  • Max. Diameter Reel w/ Backfill Blade: 12 inches / 30.5 cm
  • Max. Diameter Reel w/o Backfill Blade: 12 inches / 30.5 cm

Porta Bore

  • Drive Type:  Hydraulic
  • Maximum RPM @ full throttle:  12 rpm
  • Maximum Torque:  12 ft-lb / 16.3 Nm
  • Direction of Rotation:  12
  • Rod Length:  10 ft / 3 m
