MyDealer:Ride-on Trencher
- Length: 3.3 m (basic tractor, quad tracks)
- Weight: 3538 kg (basic tractor, quad tracks)
- Fuel Type: Diesel
- Power: 65 hp (48.5 kW)
Features

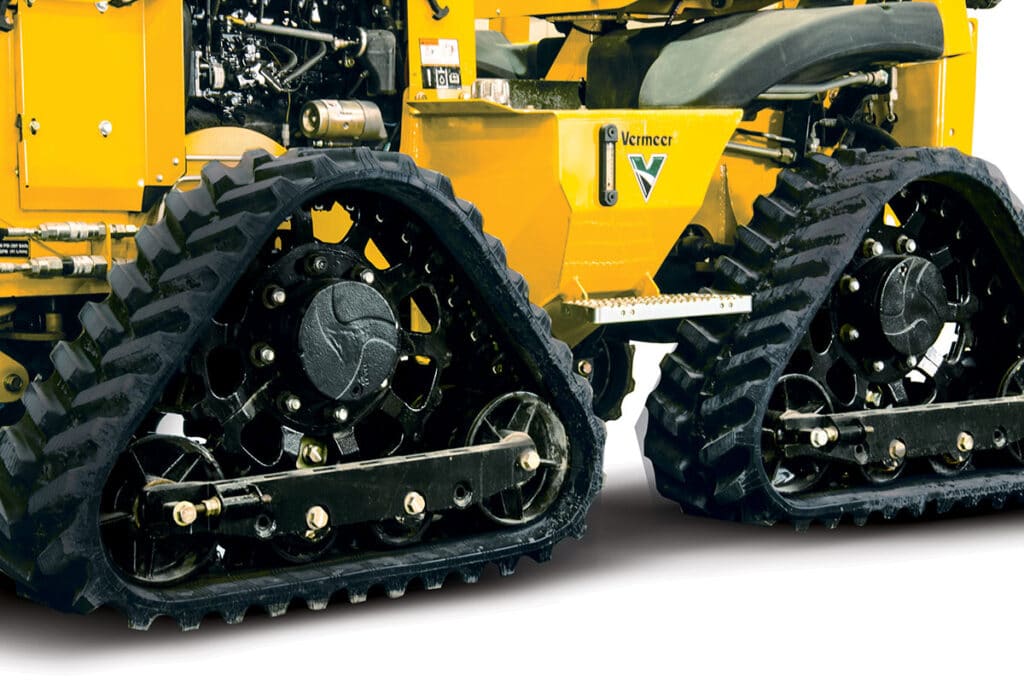

When equipped with the innovative quad track system, the RTX550 offers improved flotation, reduced surface damage, increased tractive effort and greater stability.
Key Features
- An integrated system display allows the operator to easily monitor important machine functions, while the capability to monitor the percentage of hydrostatic capacity use is especially useful when training new operators.
- The TrenchSense™ electronic control system can react faster than the operator to prevent engine stall/stop when difficult digging conditions are encountered. By eliminating the need to return controls to neutral and restart, productivity can be increased, and the whole sequence occurs within seconds.
- Common controls across the RTX lineup help the operator become more efficient and productive.
- The RTX550 is available in three ground drive configurations: a standard 31” (78.7 cm) tire option, a 35” (88.9 cm) tire option for enhanced flotation and quad tracks for reduced surface damage and increased tractive effort.
General Dimensions and Weights
- Weight (basic tractor, rubber tires): 5600 lbs / 2540.1 kg
- Weight (basic tractor, rubber tires, option two): 5870 lbs / 2662.6 kg
- Weight (basic tractor, tracks): 7800 lbs / 3538 kg
- Length (basic tractor, rubber tires): 123.6 inches / 313.9 cm
- Length (basic tractor, rubber tires, option two): 124.8 inches / 317 cm
- Length (basic tractor, tracks): 130.8 inches / 332.2 cm
- Width (basic tractor, rubber tires): 72.4 inches / 183.9 cm
- Width (basic tractor, rubber tires, option two): 77.6 inches / 197.1 cm
- Width (basic tractor, tracks): 75.8 inches / 192.5 cm
- Height (basic tractor, rubber tires): 96.8 inches / 245.9 cm
- Height (basic tractor, rubber tires, option two): 98.2 inches / 249.4 cm
- Height (basic tractor, tracks): 100.2 inches / 254.5 cm
- Ground Clearance (rubber tires): 8.8 inches / 22.4 cm
- Ground Clearance (rubber tires, option two): 10.2 inches / 25.9 cm
- Ground Clearance (tracks): 12.2 inches / 31 cm
- Angle of approach (basic tractor, rubber tires): 20 deg
- Angle of approach (basic tractor, rubber tires, option two): 23 deg
- Angle of approach (basic tractor, tracks): 30 deg
Axle Options
- Front Axle Type: Steerable planetary
- Rear Axle Type: Steerable planetary with gear box
- Axle load rating (static, per axle): 11250 lbs / 5102.9 kg
- Outside Turning Diameter (Rubber Tires, Front Steer Only): 29.8 ft / 9.1 m
- Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only): 30.3 ft / 9.2 m
- Outside turning diameter (tracks, front steer only): 31.7 ft
- Outside Turning Diameter (Rubber Tires, Front and Rear Steer): 18.8 ft / 5.7 m
- Outside Turning Diameter (Rubber Tires Option Two, Front and Rear Steer): 19.8 ft / 6 m
- Outside turning diameter (tracks, front and rear steer): 20.1 ft
- Service Brake Type: Wet disc
- Parking Brake Type: Spring-applied hydraulic release
Engine Option One
- Make and Model: Deutz TD2.9
- Gross Horsepower (Maximum): 67 hp / 50 kw
- Maximum Torque: 173 ft-lb / 234.6 Nm
- Number of Cylinders: 4
- Cooling Medium: Liquid
- Fuel Type: Diesel
- Emissions rating: Tier 4 Final
- Guaranteed sound power (CE-rating): 109 dB(A)
- Noise Level at Operator’s Ear: 90 dB(A)
Engine Option Two
- Make and Model: Cummins B3.3
- Maximum Torque: 158 ft-lb / 214.2 Nm
- Number of Cylinders: 4
- Cooling Medium: Liquid
- Fuel Type: Diesel
- Emissions rating: Tier 4i (EI Stage IIIA)
- Guaranteed sound power (CE-rating): 108 dB(A)
- Noise Level at Operator’s Ear: 90 dB(A)
Hydraulic System
- Ground drive pump capacity: 31 gpm / 117.3 L/min
- Ground drive pump relief: 4350 psi / 299.9 bar
- Attachment pump capacity: 31 gpm / 117.3 L/min
- Attachment pump relief: 5080 psi / 350.3 bar
- Auxiliary pump capacity: 11.6 gpm / 43.9 L/min
- Auxiliary pump relief: 2500 psi / 172.4 bar
Capacities
- Fuel Tank: 27 gal / 102.2 L
- Hydraulic Tank: 18 gal / 68.1 L
- Hydraulic System: 20 gal / 75.7 L
- Coolant: 3 gal / 11.4 L
Ground Drive - Rubber Tire
- Maximum forward transport speed (high): 5.6 mph / 9 km/h
- Maximum reverse transport speed (high): 5.6 mph / 9 km/h
- Tire size: 31 inch / 78.7 cm
Ground Drive - Rubber Tire Option Two
- Maximum forward transport speed (high): 6.1 mph / 9.8 km/h
- Maximum reverse transport speed (high): 6.1 mph / 9.8 km/h
- Tire size: 35 inch / 88.9 cm
Ground Drive - Tracks
- Maximum forward transport speed (high): 4.1 mph / 6.6 km/h
- Maximum reverse transport speed (high): 4.1 mph / 6.6 km/h
Electrical System
- System Voltage: 12 Volt
- Battery CCA Rating: 950
- Battery Group Class: 29H-VHD
