Whole Tree Chipper

  • Weight: 14832.5 kg
  • Fuel Type: Diesel
  • Power: 440 hp (328.1 kW)

Features

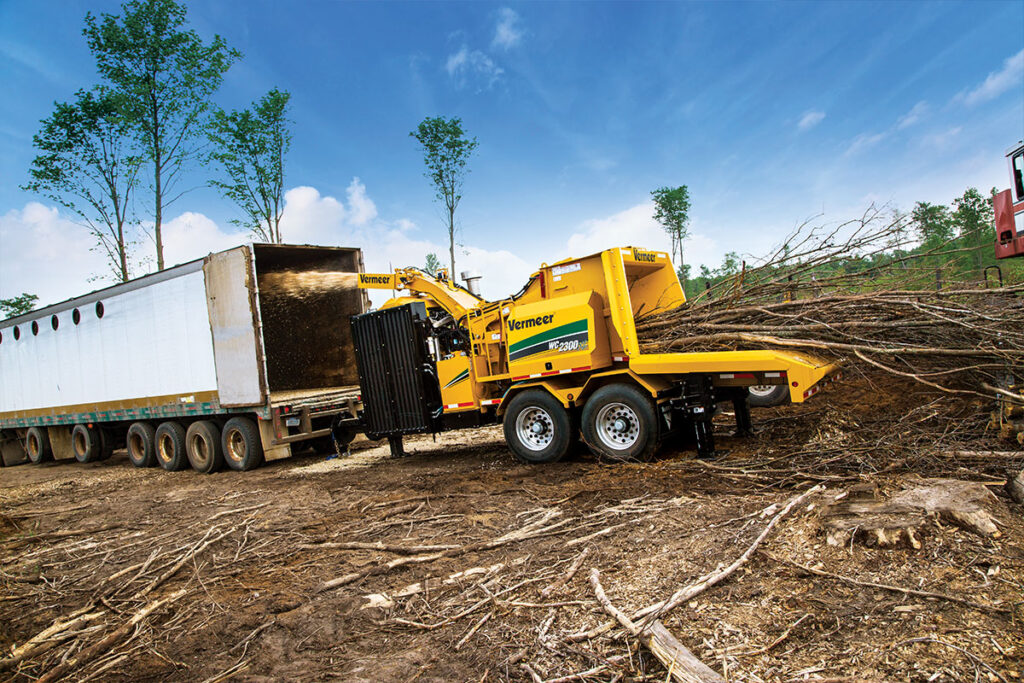

Now with a CAT C-13 Tier 4 Final engine with 440 hp (328 kW) of power, the WC2300XL whole tree chipper offers a powerful solution for producing wood chips. Material can be handled efficiently with variable-speed dual-infeed conveyor chains and SmartCrush technology, and maintenance is simple with replaceable high-wear parts.

Key Features

  • High-wear material flow areas of the machine, such as the drum, discharge chute, cutter housing and infeed conveyor floor, are designed with replaceable bolt-in wear parts to extend machine life.
  • A CAT Tier 3 engine provides 440 hp (328 kW) of power to meet your job site demands.
  • With technology such as SmartCrush to automatically increase down pressure when difficult material enters the cutting drum, and the variable-speed dual-infeed conveyor chains, operators can concentrate on loading the machine, not pushing the material through.
  • A remote control allows operators to view engine parameters and change a variety of settings.
  • Two knife options, with depths of cut of 3/8 inch (.9 cm) or 5/8 inch (1.6 cm), allow the operator to select the knife that meets their end product sizing needs.

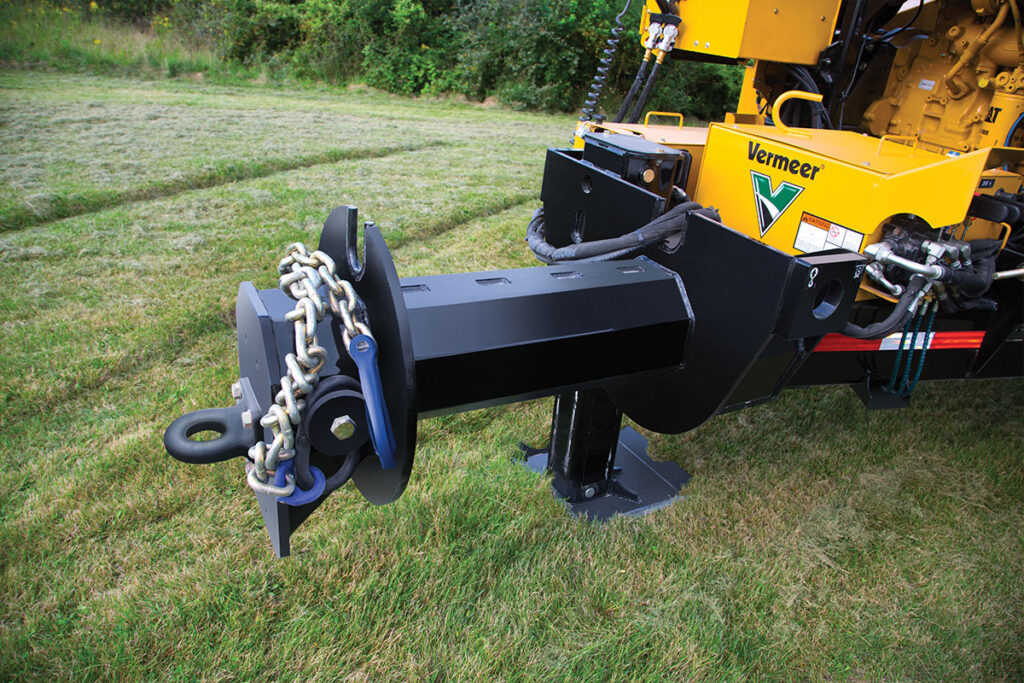

  • The WC2300XL has a compact design and built-in skidder grab on the tongue, allowing it to be moved around on-site by a skidder or excavator.

General Dimensions and Weights

  • Length: 29.8 ft / 9.1 m
  • Width: 98 inch / 248.9 cm
  • Height: 10.9 ft / 3.3 m
  • Weight – Engine Option One: 32700 lbs / 14832.5 kg
  • Weight – Engine Option Two: 35000 lbs / 15875.7 kg
  • Tongue Weight – Engine Option One: 6750 lbs / 3061.7 kg
  • Tongue Weight – Engine Option Two: 7300 lbs / 3311.2 kg
  • Sound Power – Engine Option One: 119 db(A)
  • Sound Power – Engine Option Two: 118.1 db(A)

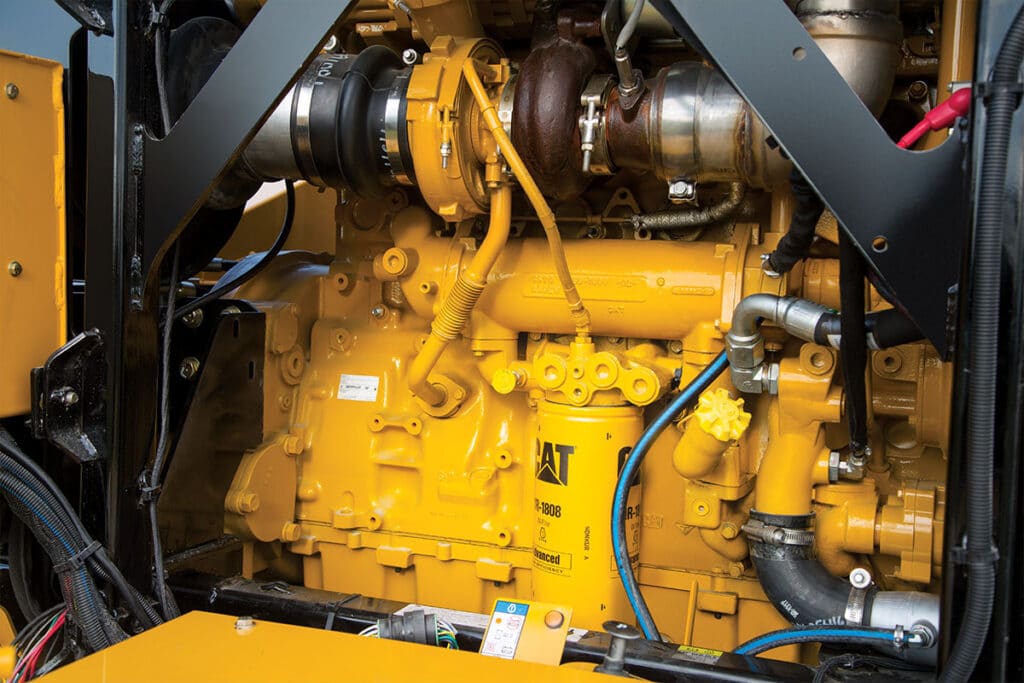

Engine Option One

  • Make and Model: CAT C-13 Tier 3 (Stage IIIA)
  • Number of Cylinders: 6
  • Gross Horsepower (Maximum): 440 hp / 328.1 kw
  • Torque (Max): 1483 ft-lb / 2010.7 Nm
  • Fuel Tank Capacity: 150 gal / 567.8 L
  • Max Fuel Consumption: 22.6 gph / 85.6 lph
  • Fuel Type: Low sulfur diesel
  • Air Cleaner: Two-stage
  • Oil Filter: Spin-on remote
  • Recommended Oil: API CJ-4 or ECF-3
  • Oil Volume with Filter: 36 qt / 34.1 L
  • Cooling Medium: Liquid
  • Coolant Capacity (Engine and Radiator): 18.5 gal / 70 L
  • Alternator: 75 amps
  • Fan: Reversible
  • Clutch Type: PT Tech electronically controlled dry
  • Clutch Drive Engagement: Engaged dry clutch

Engine Option Two

  • Make and Model: CAT C-13 Tier 4 Final (Stage IV)
  • Number of Cylinders: 6
  • Gross Horsepower (Maximum): 440 hp / 328.1 kw
  • Torque (Maximum): 1485 ft-lb / 2013.4 Nm
  • Fuel Tank Capacity: 150 gal / 567.8 L
  • Max Fuel Consumption: 22.6 gph / 85.6 lph
  • Fuel Type: Ultra-low sulfur diesel
  • Air Cleaner: Two-stage
  • Oil Filter: Spin-on remote
  • Recommended Oil: API CJ-4 or ECF-3
  • Oil Volume with Filter: 36 qt / 34.1 L
  • Cooling Medium: Liquid
  • Coolant Capacity (Engine and Radiator): 18.5 gal / 70 L
  • Alternator: 105 amps
  • Fan: Variable and reversible
  • Clutch Type: PT Tech electronically controlled dry
  • Clutch Drive Engagement: Engaged dry clutch

Drum/Disc Cutting System

  • Material Capacity: 23 inches / 58.4 cm
  • Thickness: 0.4 inches / 1 cm
  • Width: 34 inches / 86.4 cm
  • Diameter: 36 inches / 91.4 cm
  • Speed: 1169
  • Weight With Shaft: 2200 lbs / 997.9 kg
  • Safety Lock – Number of Positions: 8
  • Number of Knives: 8
  • Type: Babbitted
  • Knife Thickness: 0.6 inch / 1.6 cm
  • Material: A8 chipper steel
  • Useable Edges: 1
  • Knife Size: 8.5
  • Number of Bolts/Knife: 4
  • Replaceable Threaded Knife Block: Hex nut (4) per knife
  • Fixture Method: Bolt
  • Bedknife Size: 34 inches wide
  • Bedknife Thickness: 1.5 inches / 3.8 cm
  • Bedknife Material: Cold-formed low-carbon bar
  • Bedknife – Number of Useable Edges: 2
  • Number of Pockets: 8
  • Dimension of Pockets: 8.5 inches / 21.6 cm
  • Replaceable Wear Plates: Yes
  • Number of Replaceable Wear Plates: 8 counter knives

Cutter Drive Components - Engine Option One

  • Number of Bearings: 2
  • Bore: 4.4 inches / 11.3 cm
  • Type: Pillow block
  • Manufacturer: Dodge
  • Dynamic Capacity: 170000 lbs / 77110.7 kg
  • Static Capacity: 200000 lbs / 90718.5 kg
  • Belt Idler/Tensioner: None
  • Belt Type: 9 rib 5 V

Infeed Roller

  • Infeed Roller Width: 34 inches / 86.4 cm
  • Maximum Feed Height: 27 inches / 68.6 cm
  • Infeed Roller Weight: 575 lbs / 260.8 kg
  • Infeed Roller Diameter: 28 inches / 71.1 cm
  • Tooth Design: Straight knives
  • Drive Motor: WS-Series
  • Drive Planetary: Auburn Model 9
  • Drive Displacement: 6.9 cu-in / 113.1 cu-cm
  • Drive Manufacturer: White
  • Feed Roller Down Pressure: 1530
  • Feed Roller Orientation: Horizontal
  • Number of Feed Rollers: One upper, one conveyor
  • Number of Knives: 12
  • Feed Roller Distance to Drum: 1 inche / 2.5 cm
  • Feed Roller Speed: 98 ft/min / 29.9 m/min

Discharge System

  • Chute Height: 132 inches / 335.3 cm
  • Bottom Thickness: 0.1 inch / 0.3 cm
  • Bottom Replaceable Wear Plate: AR 400
  • Wear Plate Thickness: 0.2 inch / 0.5 cm
  • Top Thickness: 0.2 inch / 0.5 cm
  • Side Wall Thickness: 0.2 inch / 0.5 cm
  • Deflector Thickness: 0.2 inch / 0.5 cm
  • Rotation Type: 14
  • Rotational Lock: 22
  • Side Deflector Angle: 14 deg

Hydraulic System

  • Tank capacity: 42 gal / 159 L
  • Recommended Oil Type: Hy-Power 68
  • System Type: Open-center
  • Filtration Method: Intake suction screens and return filter
  • Pump Flow at Maximum RPM: 16 gpm / 60.6 L/min
  • System relief pressure: 4000 psi / 275.8 bar
  • Auto Reverse PSI: 3800 psi / 262 bar
  • Flow Control: Two-feed roller and infeed conveyor
  • Oil Cooler: 1

Electrical System

  • System Voltage: 24V
  • Battery: Group 8D 1155 CCA (Dual)
  • Standard Gauges: Yes
  • Deluxe Gauges: No
  • Switches: Toggle On/Off
  • Controller: ASM – C248 WC2300
  • Display: DP04
  • Shutdown System: Yes
  • Radio Remote Control: Yes

Chassis

  • Frame Description: 10 inches x 4 inches x .375 inch wall rectangular tubing
  • Toolbox Description: Lockable
  • Tongue Description: Fixed with skidder grab
  • Tongue Extension: None
  • Hitch Type: Pintle
  • Grapple Handle: 30 inches wide
  • Fender Description: Jeep style (steel)
  • Axle/Suspension: Dual axle
  • Type: Leaf spring
  • Manufacturer: Dexter
  • Capacity: 18740
  • Tires: 385/65R22.5 Super Single
  • Wheels: 22.5 x 14 aluminum
  • Brake Type: Air
  • Trailer Light Type: Standard

Infeed Conveyor

  • Feed Table Width: 98 inches / 248.9 cm
  • Feed Table Length – Option One: 10 ft / 3 m
  • Feed Conveyor Type: Dual independent chain
  • Material Construction: 0.38 inch thick
  • Infeed Slope: 6 deg
  • Number of Infeed Chains: 1

Other Options

  • Special Paint: Yes
  • Extended Warranty: Yes
  • Preventative Maintenance: Yes
  • Adjustable Height Discharge Chute: No
