Whole Tree Chipper

  • Weight: 21999.2 kg
  • Fuel Type: Diesel
  • Power: 600 hp (447.4 kW)

Features

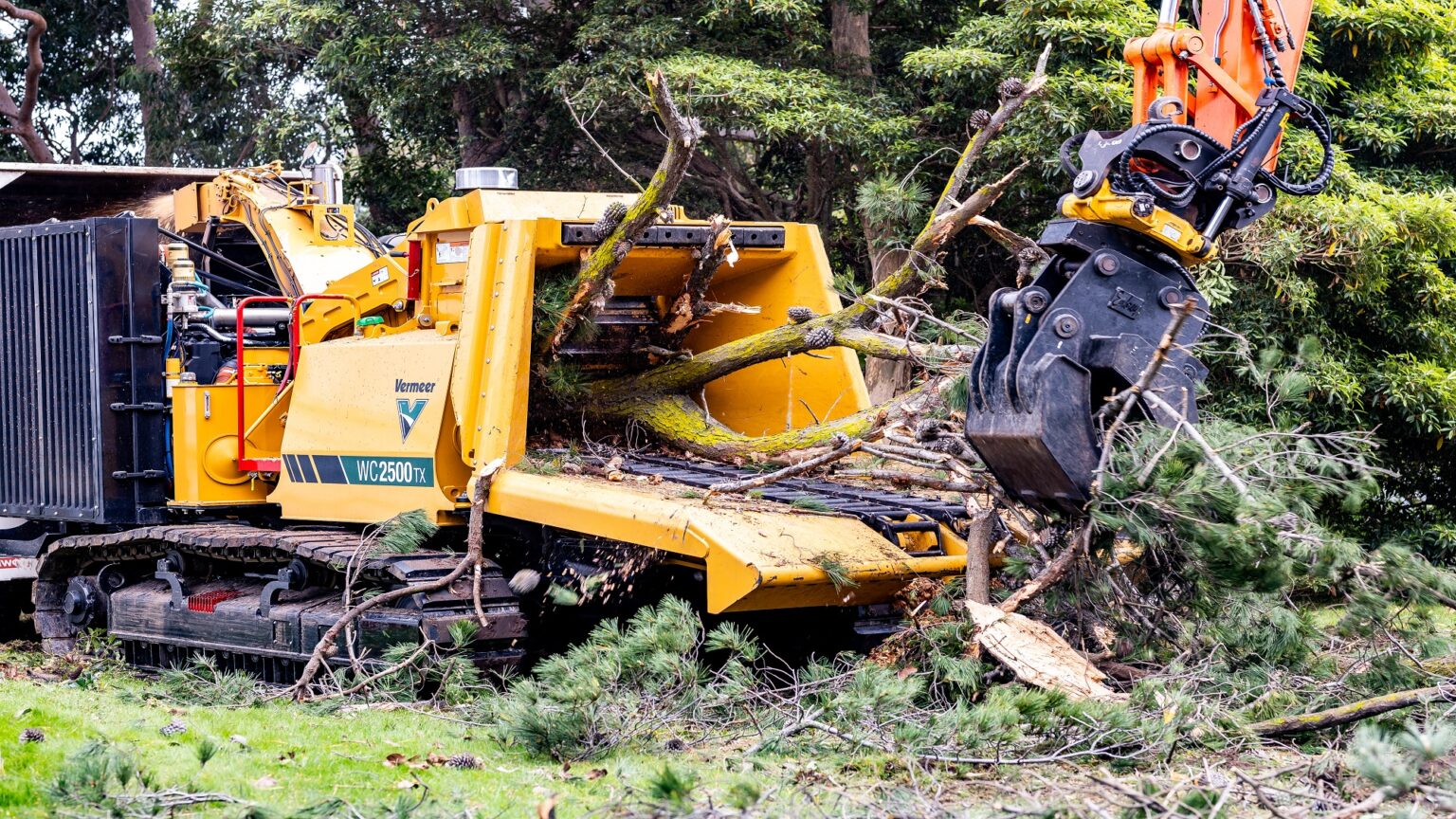

The WC2500TX whole tree chipper has a tracked undercarriage, allowing you to maneuver in the woods and tough land-clearing sites. Featuring a microchip or macrochip drum with adjustable bite sizes, faster and easier knife setup and a PT Tech clutch, the WC2500TX whole tree chipper offers a powerful and effective solution for producing wood chips in a compact footprint. Material can be handled efficiently with variable-speed dual-infeed conveyor chains and SmartCrush technology.

Key Features

  • The WC2500TX has a compact design to aid in manoeuvring in the woods and land-clearing sites but packs 600 hp (448 kW) of power to meet your production demands.
  • With SmartCrush technology that automatically increases down pressure when difficult material enters the cutting drum and variable-speed dual-infeed conveyor chains, operators can concentrate on loading the machine — not pushing the material through.
  • High-wear material flow areas of the machine — such as the drum, discharge chute, cutter housing and infeed conveyor floor — are designed with replaceable bolt-in wear parts to extend machine life.
  • The microchip drum produces a variety of sizes between 1/8″ (3 mm) to 5/8″ (16 mm) chips, while the microchip drum produces chip sizes between 5/8” (16 mm) and 1.25” (32 mm).
  • Knife setup is fast and easy. The knife position is set with two small bolts — no babbiting needed. Bite-size is adjustable in 1/8″ (3 mm) increments from 1/8″ (3 mm) up to 1.25″ (32 mm) via shims. Makes knife changeout on the job site easy to help reduce the cost of operation.
  • Self-adjusting, push-button, hydraulic dry clutch provides consistent engagement — helping to prolong clutch life, lower maintenance costs and reduce the risk of damage by the operator.

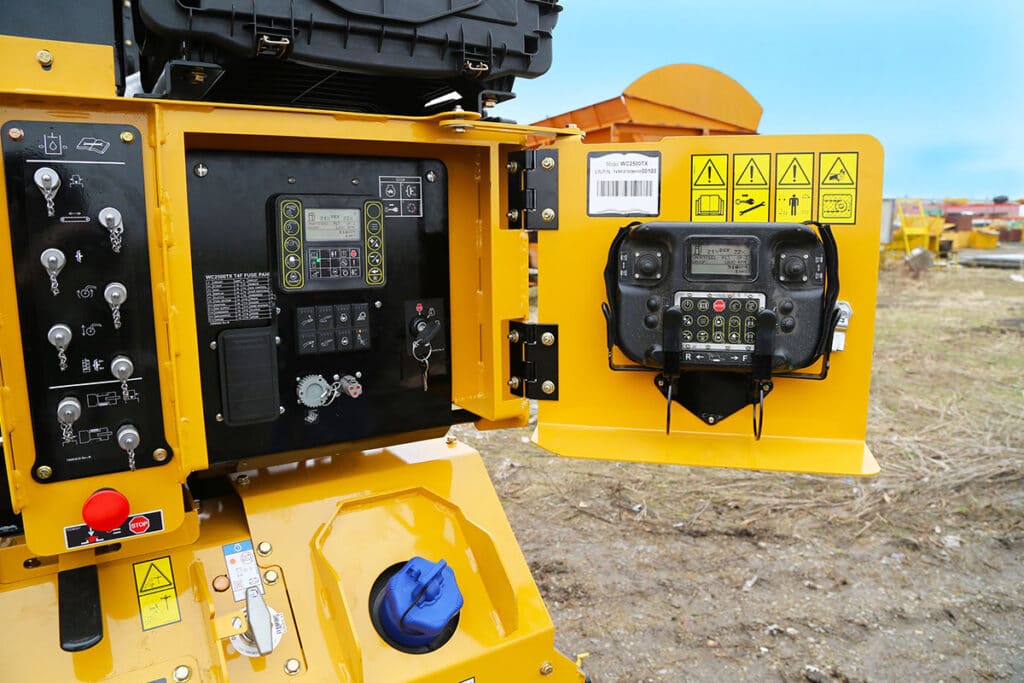

  • Vermeer remote control system, designed specifically for this machine, allows operators to engage/disengage the clutch and control the trip meter, EcoIdleTM engine control system and work lights from the remote.

General Dimensions and Weights

  • Maximum Length (Operation): 28.4 foot / 8.7 m
  • Maximum Length (Transport): 26.1 foot / 8 m
  • Width: 118 inches / 299.7 cm
  • Height: 11.6 foot / 3.5 m
  • Weight: 48500 lbs / 21999.2 kg
  • Sound Power: 122

Engine Option One

  • Make and Model: Cummins Tier 3
  • Number of Cylinders: 6
  • Gross Horsepower (Maximum): 600 hp / 447.4 kw
  • Torque (Max): 2050 ft-lb / 2779.4 Nm
  • Fuel Tank Capacity: 200 gal / 757.1 L
  • Max Fuel Consumption: 31 gph / 117.3 lph
  • Fuel Type: Ultra-low sulfur diesel
  • Air Cleaner: Two-stage direct flow
  • Oil Filter: Spin-on
  • Recommended Oil: CES 20078 or 20081
  • Oil Volume with Filter: 52 qt / 49.2 L
  • Maximum Angle of Continuous Operation: 45 deg
  • Cooling Medium: Liquid
  • Coolant Capacity (Engine and Radiator): 23 gal / 87.1 L
  • Alternator: 105
  • Fan: Reversible
  • Clutch Type: PT Tech electronically controlled dry
  • Clutch Drive Engagement: Hydraulic

Engine Option Two

  • Make and Model: Cummins QSX15 Tier 3
  • Number of Cylinders: 6
  • Gross Horsepower (Maximum): 600 hp / 447.4 kw
  • Torque (Maximum): 1875 ft-lb / 2542.2 Nm
  • Fuel Tank Capacity: 200 gal / 757.1 L
  • Max Fuel Consumption: 31 gph / 117.3 lph
  • Fuel Type: Ultra-low sulfur diesel
  • Air Cleaner: Two-stage direct flow
  • Oil Filter: Spin-on
  • Recommended Oil: CES 20078 or 20081
  • Oil Volume with Filter: 52 qt / 49.2 L
  • Maximum Angle of Continuous Operation: 45 deg
  • Cooling Medium: Liquid
  • Coolant Capacity (Engine and Radiator): 23 gal / 87.1 L
  • Alternator: 100
  • Fan: Reversible
  • Clutch Type: PT Tech electronically controlled dry
  • Clutch Drive Engagement: Hydraulic

Drum/Disc Cutting System

  • Material Capacity: 25 inches / 63.5 cm
  • Thickness: 0.5 inches / 1.3 cm
  • Width: 34 inches / 86.4 cm
  • Diameter: 36 inches / 91.4 cm
  • Speed: 1169 rpm
  • Weight With Shaft: 3163 lbs / 1434.7 kg
  • Safety Lock – Number of Positions: 2 to 4
  • Type: Adjustable
  • Knife Thickness: 0.6 inches / 1.6 cm
  • Material: A8 chipper steel
  • Useable Edges: 1
  • Knife Size: 8.5 or 17
  • Number of Bolts/Knife: 4 or 5
  • Replaceable Threaded Knife Block: Hex nut
  • Fixture Method: Bolt
  • Bedknife Size: 34 inches wide
  • Bedknife Thickness: 1.5 inches / 3.8 cm
  • Bedknife Material: Cold-formed low-carbon bar
  • Bedknife – Number of Useable Edges: 2
  • Number of Pockets: 2 or 4
  • Replaceable Wear Plates: Yes
  • Number of Replaceable Wear Plates: 8

Cutter Drive Components - Engine Option One

  • Number of Bearings: 2
  • Bore: 5.4 inches / 13.8 cm
  • Type: Pillow block
  • Manufacturer: Dodge
  • Dynamic Capacity: 166000 lbs / 75296.3 kg
  • Static Capacity: 236000 lbs / 107047.8 kg
  • Belt Idler/Tensioner: Slide engine
  • Belt Type: 12 rib 5 V

Infeed Roller

  • Infeed Roller Width: 34 inches / 86.4 cm
  • Maximum Feed Height: 27 inches / 68.6 cm
  • Infeed Roller Weight: 575 lbs / 260.8 kg
  • Infeed Roller Diameter: 28 inches / 71.1 cm
  • Tooth Design: Straight knives
  • Drive Motor: WS-series
  • Drive Planetary: Auburn Model 9
  • Drive Displacement: 6.9 cu-in / 113.1 cu-cm
  • Drive Manufacturer: White
  • Feed Roller Down Pressure: 1530
  • Feed Roller Orientation: Horizontal
  • Number of Feed Rollers: One upper, one conveyor
  • Number of Knives: 12
  • Feed Roller Distance to Drum: 1 inches / 2.5 cm
  • Feed Roller Speed: 98 ft/min / 29.9 m/min

Discharge System

  • Chute Height: 132 inches / 335.3 cm
  • Bottom Thickness: 0.1 inches / 0.3 cm
  • Bottom Replaceable Wear Plate: AR 400
  • Wear Plate Thickness: 0.2 inches / 0.5 cm
  • Top Thickness: 0.2 inches / 0.5 cm
  • Side Wall Thickness: 0.2 inches / 0.5 cm
  • Deflector Thickness: 0.2 inches / 0.5 cm
  • Rotation Type: Hydraulic
  • Rotational Lock: Hydraulic
  • Side Deflector Angle: 14 deg
  • Up Deflector Angle: 22 deg
  • Down Deflector Angle: 14 deg

Discharge System 2 - Top Load

  • Chute Height: 194.5 inches / 494 cm
  • Bottom Thickness: 0.1 inches / .3 cm
  • Bottom Replaceable Wear Plate
  • Wear Plate Thickness: 0.2 inches / 0.5 cm
  • Top Thickness: 0.2 inches / 0.5 cm
  • Side Wall Thickness: 0.2 inches / 0.5 cm
  • Deflector Thickness: 0.2 inches / 0.5 cm
  • Up Deflector Angle: 18 deg
  • Down Deflector Angle: 90 deg

Hydraulic System

  • Tank capacity: 33 gal / 124.9 L
  • Recommended Oil Type: Hy-Power 68, 46, or 32
  • System Type: Open-center
  • Filtration Method: Intake suction screens and return filter
  • Pump Flow at Maximum RPM: 16 gpm / 60.6 L/min
  • System relief pressure: 4000 psi / 275.8 bar
  • Auto Reverse PSI: 3750 psi / 258.6 bar
  • Flow Control: Two – feed roller and infeed conveyor
  • Oil Cooler: 1

Hydraulic system - track

  • Tank capacity: 33 gal / 124.9 L
  • Pump Flow at Maximum RPM: 38 gpm / 143.8 L/min
  • System relief pressure: 4786 psi / 330 bar

Electrical System

  • System Voltage: 24V
  • Battery: Group 8D 1400 CCA (dual)
  • Standard Gauges: Yes
  • Deluxe Gauges: No
  • Switches: Push button
  • Controller: Danfoss MC-050
  • Display: DP10
  • Shutdown System: Yes
  • Radio Remote Control: Yes

Chassis

  • Frame Description: 8″ x 4″ x .375″ wall rectangular tubing
  • Toolbox Description: Lockable
  • Brake Type: Air
  • Trailer Light Type: LED
  • Track pad width: 20 inches / 50.8 cm
  • Track Gauge: 97 inches / 246.4 cm
  • Track Pitch: 132 inches / 335.3 cm
  • Ground pressure: 8.4 psi / 0.6 bar

Other Options

  • Special Paint: Yes
  • Extended Warranty: Yes
  • Adjustable Height Discharge Chute: No

Infeed Conveyor

  • Feed Table Width: 98 inches / 248.9 cm
  • Feed Table Length – Option One: 10 foot / 3 m
  • Feed Conveyor Type: Dual independent chain
  • Material Construction: .50″ thick
  • Infeed Floor Construction: AR400 wear plate
  • Infeed Slope: 6 deg
  • Number of Infeed Chains: 2
  • Replaceable Chain Slides: Yes
